Alternating Current (AC) electricity is fascinating because it constantly changes direction. This back-and-forth movement is due to a magnetic field in the AC generator, which causes electrons in the wires to be pushed and pulled. As a result, the voltage alternates between positive and negative values, creating a dynamic flow of electricity. Although a multimeter might show a steady reading, the actual voltage is far from constant.
If we were to graph the voltage over time, we would see a sine wave pattern. This pattern represents the voltage fluctuating between a peak positive and a peak negative value. These peaks occur as the magnetic field reaches its maximum intensity while passing through the coils of wire in the AC generator. For example, the voltage can reach up to 170 volts at its peaks. If we averaged these values over time, we would end up with 0 volts, which isn’t very practical for understanding the power being delivered.
To make sense of the fluctuating voltage, engineers use a concept called the root mean square (RMS) voltage. This is the value that multimeters display when connected to electrical outlets. The RMS voltage provides a more useful measure of the effective voltage in an AC system.
To calculate the peak voltage (Vmax) from the RMS voltage (Vrms), you multiply the RMS voltage by the square root of 2, which is approximately 1.41. Conversely, to find the RMS voltage from the peak voltage, you divide the peak voltage by 0.707.
When you connect a multimeter to power outlets in different regions, you’ll notice variations in voltage and frequency. In North America, outlets typically provide 120 volts at a frequency of 60 hertz. In contrast, British, Australian, and European outlets usually offer 230 volts (British and European) or 240 volts (Australian) at a frequency of 50 hertz.
Frequency, measured in hertz (Hz), indicates how many times the sine wave repeats each second. In North America, the frequency is 60 Hz, meaning the wave repeats 60 times per second. In most other parts of the world, the frequency is 50 Hz. The frequency affects the peak voltage of each electrical system, which is why it’s essential to understand these differences when working with AC electricity globally.
For more insights into electrical and electronics engineering, explore additional resources and videos available online. You can also connect with us on social media platforms like Facebook, Twitter, Instagram, and LinkedIn, or visit theengineeringmindset.com for more educational content.
Create a graph of an AC voltage sine wave using graphing software or a spreadsheet. Plot the voltage over time to visualize the sine wave pattern. Identify and label the peak positive and negative values, as well as the RMS voltage. This will help you understand how AC voltage fluctuates and the significance of RMS voltage.
Using the formulas provided, calculate the peak voltage (Vmax) from a given RMS voltage and vice versa. Compare your results with standard voltages in different regions (e.g., 120V in North America, 230V in Europe). This exercise will reinforce your understanding of the relationship between Vrms and Vmax.
Research the standard AC voltage and frequency in various countries. Create a table to compare these values. Discuss how these differences might affect electrical appliances when used internationally. This activity will deepen your understanding of global AC voltage standards and their implications.
Use a multimeter to measure the voltage and frequency of AC outlets in your area. Record your findings and compare them with the theoretical values discussed in the article. This practical experience will enhance your skills in using multimeters and interpreting their readings.
Engage with an online simulation of an AC circuit. Adjust the frequency and observe how it affects the sine wave and peak voltage. This interactive activity will help you visualize the impact of frequency changes on AC voltage and reinforce the concepts learned.
In AC electricity, the voltage and current constantly change direction between forwards and backwards. This occurs due to a magnetic field in the AC generator, which pushes and pulls electrons in the wires. As a result, the voltage alternates between positive and negative values as it flows. The voltage is not constant, even though a multimeter may suggest otherwise. If we plotted this, we would see a sine wave pattern, with the voltage fluctuating between a peak positive and a peak negative value as the maximum intensity of the magnetic field passes through the coils of wire in the AC generator.
For example, this system can reach 170 volts at its peaks. If we plotted these values, we would observe positive and negative peaks of 170 volts. However, if we took the average of these values, we would get 0 volts, which is not very useful. To address this, engineers use the root mean squared (RMS) voltage, which is what multimeters calculate when connected to electrical outlets.
To find the peak voltage, we multiply the RMS voltage by the square root of 2, approximately 1.41. Conversely, to find the RMS voltage, we divide the peak voltage by 0.707.

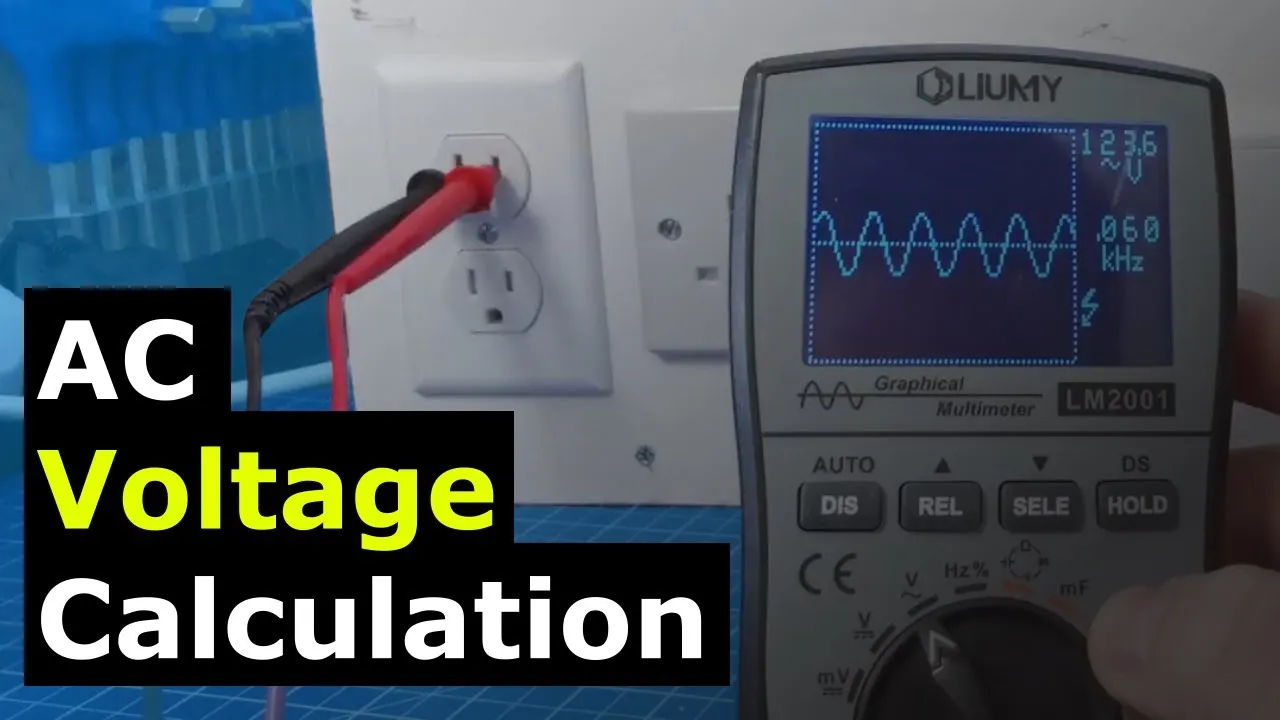

For instance, in North America, British, Australian, and European power outlets, the multimeter shows basic waveforms. When connected to any of these outlets between the phase and neutral, we observe a sine wave, indicating AC electricity. The British and European outlets typically provide 230 volts, while the Australian outlet provides 240 volts, all at a frequency of 50 hertz. In contrast, North American outlets provide 120 volts at a frequency of 60 hertz.
The frequency, measured in hertz, indicates how many times the sine wave repeats per second—60 times per second in North America and 50 times per second in most other parts of the world. The peak voltage of each electrical system varies accordingly.
To continue learning about electrical and electronics engineering, check out one of the videos on screen now. You can also follow us on social media platforms like Facebook, Twitter, Instagram, LinkedIn, and visit theengineeringmindset.com.
AC – Alternating Current, a type of electrical current in which the flow of electric charge periodically reverses direction. – In most households, the power supply is AC, which allows for efficient transmission over long distances.
Voltage – The electric potential difference between two points, which causes current to flow in a circuit. – Engineers must carefully calculate the voltage required for each component to ensure the circuit functions properly.
Frequency – The number of cycles per second in an alternating current, measured in hertz (Hz). – The frequency of the power grid in Europe is typically 50 Hz, whereas in North America, it is 60 Hz.
RMS – Root Mean Square, a statistical measure of the magnitude of a varying quantity, often used to calculate the effective value of an AC voltage or current. – The RMS voltage of an AC circuit is crucial for determining the power delivered to a load.
Sine – A mathematical function that describes a smooth periodic oscillation, often used to model AC waveforms. – The voltage in an AC circuit is typically represented as a sine wave to illustrate its periodic nature.
Wave – A disturbance or oscillation that travels through space and matter, transferring energy from one point to another. – Engineers analyze wave patterns to understand how energy propagates through different media.
Peak – The maximum value of a waveform, such as voltage or current, in a given cycle. – The peak voltage of an AC signal is higher than its RMS value, which is important for insulation design.
Hertz – The unit of frequency, equal to one cycle per second. – The standard frequency for electrical systems is measured in hertz, which determines the timing of AC cycles.
Engineers – Professionals who apply scientific and mathematical principles to design, develop, and analyze technological solutions. – Electrical engineers often work with complex systems to ensure the safe and efficient distribution of electricity.
Electricity – A form of energy resulting from the existence of charged particles, used to power devices and systems. – Understanding the principles of electricity is fundamental for engineers working in power generation and distribution.
