In this article, we’ll dive into the concept of vector addition in two-dimensional space. We’ll learn how to add two vectors and see how this process looks visually.
Let’s consider two vectors in 2D space, called Vector A and Vector B. Each vector has two parts, which we can write like this:
To find the total of these vectors, we add their matching parts together.
Here’s how we add Vector A and Vector B:
So, the new vector, which we’ll call Vector C, is:
This shows that adding two 2D vectors gives us another 2D vector.
To really get vector addition, it’s helpful to see these vectors on a graph.
To plot Vector A, start at the origin (0,0) and move:
This puts the end of Vector A at (6, -2).
Now, plot Vector B by starting at the origin and moving:
This places the end of Vector B at (-4, 4).

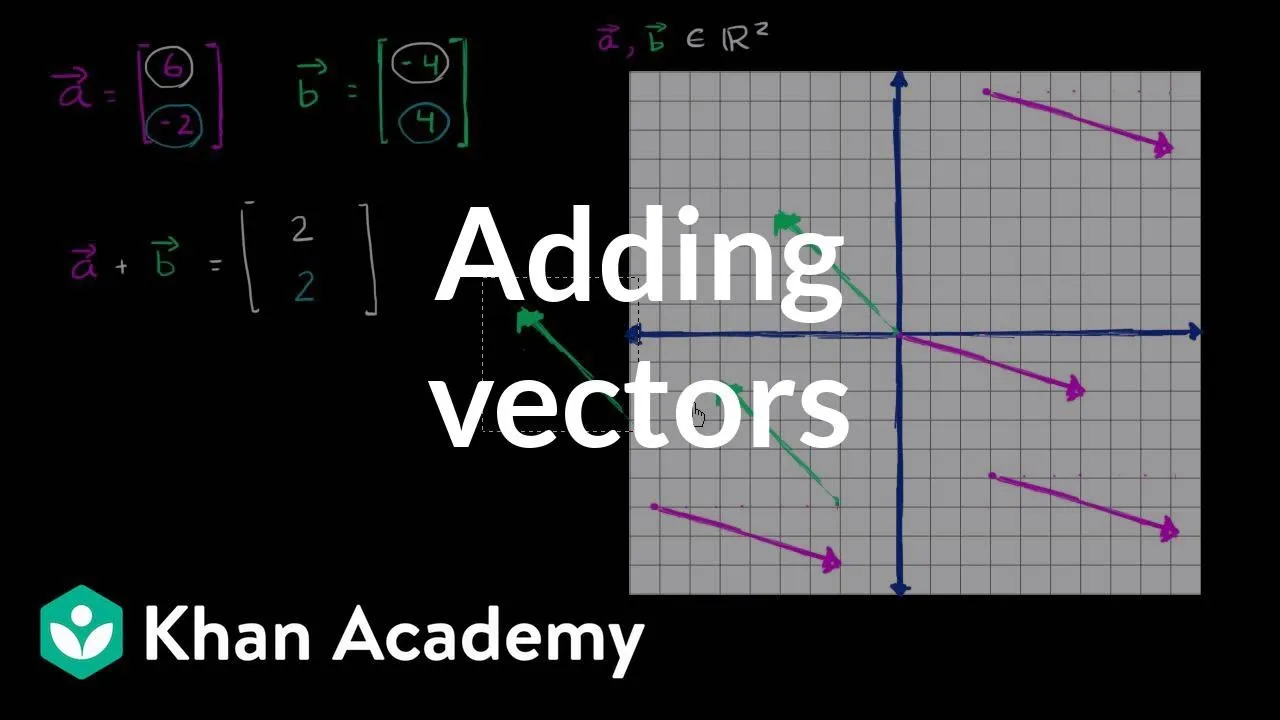

We can draw these vectors as arrows. Vector A is an arrow from the origin to (6, -2), and Vector B is an arrow from the origin to (-4, 4).
To see how the vectors add up, we use the “tip-to-tail” method:
The resulting vector, Vector C, is drawn from the origin to (2, 2). This blue arrow shows the sum of Vector A and Vector B.
An interesting feature of vector addition is that it doesn’t matter which vector you add first. This is called the commutative property.
For example, if we add Vector B to Vector A, we still get:
So, we end up with the same Vector C: (2, 2).
To see this, start with Vector B and then add Vector A:
The endpoint is the same, proving that the order doesn’t change the result.
In summary, adding vectors in two dimensions is simple: just add their parts and visualize them on a graph. The commutative property ensures that the order of addition doesn’t matter, making vector math consistent and reliable in both math and physics.
Use an online vector addition simulator to visually add Vector A and Vector B. Observe how the vectors are combined using the tip-to-tail method and verify the resulting Vector C. This will help you understand the graphical representation of vector addition.
On graph paper, draw Vector A and Vector B starting from the origin. Use a ruler to ensure accuracy. Then, draw Vector C by adding the vectors using the tip-to-tail method. Label each vector and check your work by comparing the calculated components.
In groups, assign roles to each member as Vector A, Vector B, and Vector C. Use string or tape on the floor to represent the vectors. Physically walk the path of each vector to demonstrate the tip-to-tail method, and discuss how the vectors combine to form Vector C.
Experiment with the commutative property by reversing the order of vector addition. First, add Vector A to Vector B, then reverse the order and add Vector B to Vector A. Record your observations and confirm that the resulting vector is the same in both cases.
Create a storyboard that illustrates the process of vector addition. Include panels that show the initial vectors, the tip-to-tail method, and the resulting vector. Use captions to explain each step and how the commutative property is demonstrated.
Vector Addition – The process of combining two or more vectors to produce a resultant vector. – In physics class, we learned how vector addition is used to find the total displacement of an object moving in different directions.
Two Dimensions – A plane or surface that has length and width but no depth. – When studying motion in two dimensions, we often use graphs to represent the paths of moving objects.
Vector A – A specific vector often used as a reference in problems involving vector operations. – In our assignment, vector A represented the force applied to the object in the eastward direction.
Vector B – Another specific vector used alongside vector A in vector operations. – Vector B was used to represent the force applied to the object in the northward direction.
Vector C – The resultant vector obtained from the addition of vectors A and B. – By calculating vector C, we determined the overall effect of the combined forces acting on the object.
Components – The projections of a vector along the axes of a coordinate system. – To simplify calculations, we broke down the vector into its horizontal and vertical components.
Origin – The point of intersection of the axes in a coordinate system, typically where the values are zero. – The graph showed the object’s initial position at the origin before it started moving.
Graph – A visual representation of data or mathematical functions, often using a coordinate system. – We plotted the object’s velocity over time on a graph to analyze its motion.
Commutative Property – A mathematical principle stating that the order of addition does not affect the sum. – The commutative property of vector addition means that vector A plus vector B is the same as vector B plus vector A.
Visualize – To form a mental image or representation of something, often used in understanding complex concepts. – By using diagrams, we can better visualize how forces interact in a physics problem.
