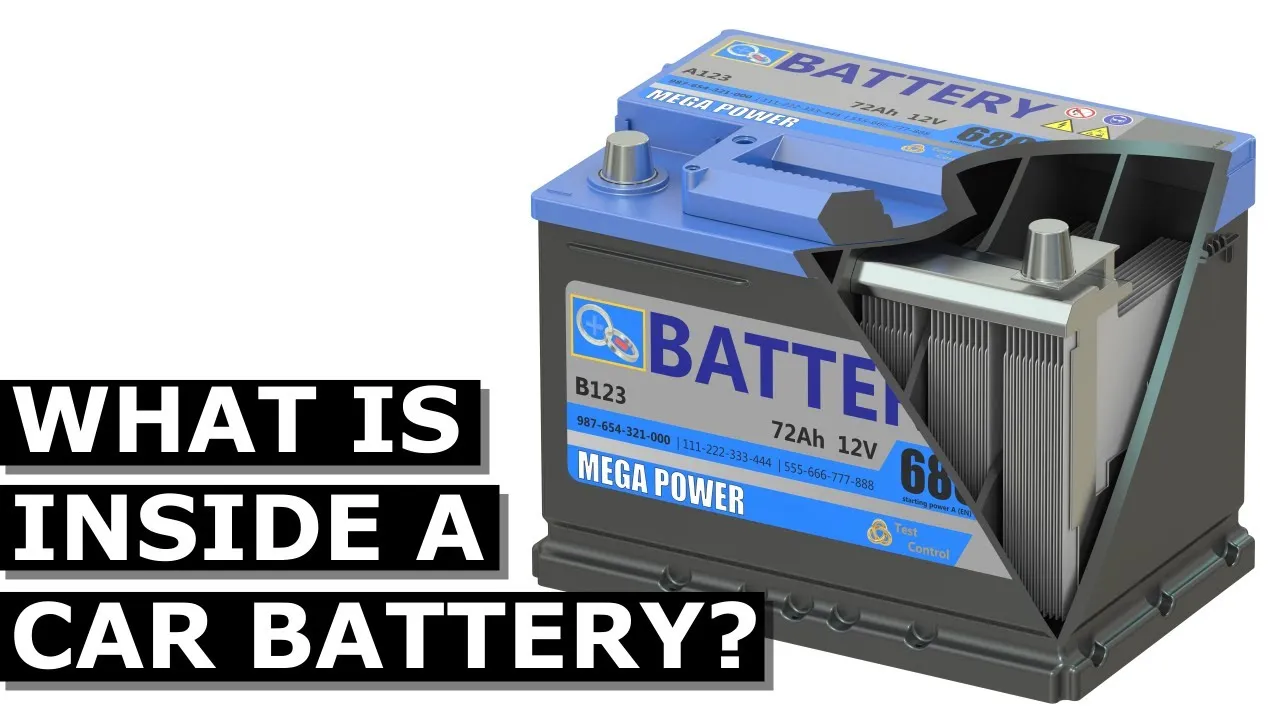

Let’s explore the main parts of a car battery and understand how it works. A car battery is housed in a plastic case that holds all its internal components securely. On top of the battery, there’s a plastic lid with two terminals: one positive and one negative. When you remove the lid, you can see inside the battery.
Inside the battery, you’ll find it’s divided into six separate chambers, each separated by a plastic wall. These chambers are called cells. Each cell generates about 2.1 volts of direct current (DC). The cells are connected in series, meaning the negative terminal of one cell is connected to the positive terminal of the next cell. This setup gives the battery a total voltage of around 12.6 volts, similar to how household batteries are connected to increase voltage.
Each cell in the battery is linked by a plate strap made from lead. These straps are welded through the plastic walls to form connections. In the battery, current flows from the positive to the negative terminal, following conventional current theory. However, electrons actually flow in the opposite direction, from negative to positive.
Each cell contains two plate straps: one positive and one negative. These straps connect to several plates, which are sheets of lead formed into grid-like structures to maximize surface area. The grids are coated with a paste of lead oxide, where the chemical reactions occur. This paste acts like a sponge, absorbing some of the electrolyte liquid to enhance battery performance.
The size of the plates determines how much current the battery can provide, but it doesn’t affect the voltage. The materials used in the chemical reaction and the number of plates determine the voltage produced by each cell. The grid holds the paste in place, ensuring even current distribution across the plate and helping transport electrons out of the battery and into the car’s electrical system.
The negative plate is the anode, made of pure lead with small additives to harden it and prevent corrosion. The positive plate is the cathode, made from lead oxide. These plates are made of different materials to facilitate the chemical reaction and release electrons.
To prevent the positive and negative plates from touching and causing a short circuit, each positive plate is placed in an envelope separator. This is a porous material that allows ions to flow through without direct contact between the plates. The positive and negative plates are positioned with a small gap between them. The chamber is then filled with an electrolyte liquid made of sulfuric acid and water, which is why it’s called a lead-acid battery.
That’s a wrap on the basics of car batteries! To continue learning, check out more resources and videos on this topic. Stay curious and keep exploring!
Explore a virtual simulation of a car battery dissection. Identify and label the different parts such as the plastic case, cells, plate straps, and terminals. This will help you visualize the internal structure and understand how each component contributes to the battery’s function.
Calculate the total voltage of a car battery by adding up the voltage from each cell. Use the information that each cell generates about 2.1 volts. This exercise will reinforce your understanding of how cells are connected in series to produce a total voltage.
Participate in a role-playing activity where you act as electrons moving through the battery. Start from the negative terminal and move towards the positive terminal, mimicking the flow of electrons. This will help you grasp the concept of electron flow and conventional current theory.
Conduct a simple experiment to understand the role of different materials in a battery. Use different metals to create a basic battery and observe how the choice of materials affects the voltage and current. This hands-on activity will deepen your understanding of the materials used in car batteries.
Design a model to prevent short circuits in a battery using materials like paper or cardboard to simulate envelope separators. Test your model by ensuring that the positive and negative plates do not touch. This challenge will enhance your problem-solving skills and understanding of battery safety.
Here’s a sanitized version of the provided YouTube transcript:
—
Let’s have a look at the main parts of a car battery and then we’ll understand how it works. First of all, we have the plastic case, which holds all the internal components in place. On the top, we have the plastic lid, and there are two terminals: a positive and a negative. By removing the lid, we can see inside. Notice the casing is divided into six separate chambers, each separated by a plastic wall. Each chamber is known as a cell. Each cell generates around 2.1 volts of direct current (DC). Each cell is connected in series; the negative of one cell is connected to the positive of the next cell to give us a total voltage of around 12.6 volts. It’s similar to connecting household alkaline batteries together, where the voltages add together to provide a higher total voltage.
Each cell in the battery is connected via a plate strap, which is made from lead. These straps are welded together through the plastic wall to form the connection. As we look at the battery from this view, we see that current flows through the battery cells from the positive to the negative, following conventional current theory. However, what’s actually happening is that the electrons are flowing in the opposite direction, from the negative to the positive.
Notice there are two plate straps in each cell: one positive and one negative. These are called plate straps because each strap is connected to a number of plates, which are sheets of lead. The plates are formed into grid-type structures, maximizing the surface area. The grids are coated in a paste of lead oxide. The paste is where the chemical reaction occurs, and we’ll see that a little later in this video. The paste acts like a sponge and absorbs some of the electrolyte liquid, which improves battery performance.
The size of the plate determines how much current a battery can provide, but it doesn’t change the voltage. The materials used for the chemical reaction and the number of plates determine the voltage produced by each cell. The grid holds the paste in place to ensure a uniform current distribution across the plate and helps transport the electrons out of the battery and around the car’s electrical circuit.
The negative plate is the anode, made of pure lead, although some small amounts of additives are added to harden the lead and protect it from corrosion. The positive plate is the cathode, made from lead oxide. The plates are made of dissimilar materials to form the chemical reaction and release the electrons.
We don’t want the positive and negative plates to come into direct contact with each other, as this would short-circuit the battery. Instead, we place each positive plate into an envelope separator, which is a porous material that allows ions to flow through it without the materials coming into direct contact with each other. The positive and negative plates will sit between each other with a small gap in between each plate. The chamber is then filled with an electrolyte liquid of sulfuric acid and water; hence, the battery is called a lead-acid battery.
That’s it for this video! To continue your learning, check out one of the videos on screen now, and I’ll catch you there for the next lesson. Don’t forget to follow us on social media and visit the engineeringmindset.com.
—
This version maintains the original content while removing informal language and ensuring clarity.
Battery – A device consisting of one or more electrochemical cells that convert stored chemical energy into electrical energy. – Example sentence: The battery in the remote control provides the power needed to change the channels on the TV.
Cells – Basic units of a battery that store and release electrical energy through chemical reactions. – Example sentence: A car battery typically contains six cells that work together to start the engine.
Current – The flow of electric charge through a conductor, typically measured in amperes. – Example sentence: The current flowing through the circuit was strong enough to power the light bulb.
Voltage – The difference in electric potential energy between two points in a circuit, which causes current to flow. – Example sentence: The voltage across the battery terminals was measured to ensure it was sufficient to power the device.
Plates – Conductive surfaces within a battery that participate in chemical reactions to generate electricity. – Example sentence: The lead plates inside the battery are crucial for storing and releasing electrical energy.
Lead – A heavy metal used in the plates of some batteries, such as car batteries, to store electrical energy. – Example sentence: Lead is commonly used in car batteries due to its ability to conduct electricity and withstand corrosion.
Negative – The terminal or side of a battery that has an excess of electrons and is marked with a minus (-) sign. – Example sentence: The negative terminal of the battery must be connected to the correct part of the circuit to ensure proper operation.
Positive – The terminal or side of a battery that has a deficiency of electrons and is marked with a plus (+) sign. – Example sentence: Connecting the positive terminal to the wrong part of the circuit can cause the device to malfunction.
Electrolyte – A chemical substance inside a battery that allows the flow of electrical charge between the positive and negative plates. – Example sentence: The electrolyte in the battery helps facilitate the chemical reactions necessary to produce electricity.
Circuit – A closed loop through which electric current can flow, typically consisting of a power source, conductors, and a load. – Example sentence: When the switch is turned on, the circuit is completed, allowing electricity to flow and light up the bulb.
