Welcome! Today, we are diving into the fascinating world of centrifugal pumps, a crucial component in many engineering applications. These pumps are incredibly common, found in industries ranging from commercial and industrial buildings to residential homes, ships, and even aircraft. It’s rare to find a building without at least one centrifugal pump.
Centrifugal pumps are often used in large facilities, especially in commercial and industrial settings, where they support various systems like heating and cooling by circulating water through pipes. If you’re pursuing a career in engineering, you’ll likely encounter these pumps frequently due to their widespread use.

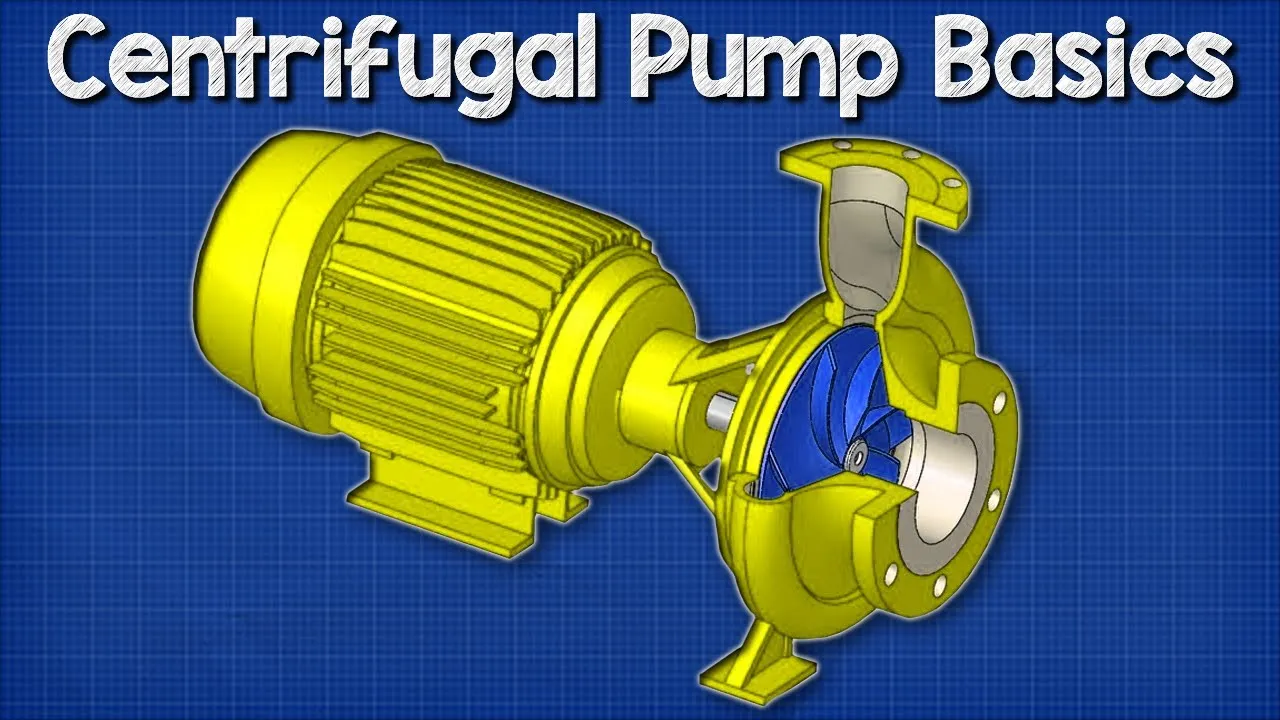

In a typical centrifugal pump setup, an induction motor is mounted at the back. This motor is connected to the pump via a shaft, which also connects to the impeller. The impeller is a crucial component that rotates when the motor runs, and its speed can be adjusted to change the flow rate of the system.
The pump has two main ports: the inlet and the outlet. The inlet, or suction line, is usually located at the center on a horizontal axis, while the outlet, or discharge line, is on a vertical axis. For optimal performance, the impeller must be submerged in water to prevent issues like cavitation, which can damage the impeller.
The pump casing features a volute, a spiral-shaped component that runs around the pump’s circumference. The volute’s diameter increases from the inlet to the outlet, facilitating greater water flow and an increased mass flow rate. As water enters through the inlet, the impeller’s rotation pushes it outward, where it collects in the volute before exiting through the discharge port.
The impeller is designed with curved veins extending from the center to the outer edge, known as a backwards curve impeller. This design is efficient for moving water. Unlike a paddle, these veins don’t push water directly; instead, water flows between them, and centrifugal force helps propel it out of the pump.
As the impeller spins, it creates low pressure at the inlet, drawing fluid into the center. The centrifugal force and inertia cause the fluid to exit the impeller in a spiral trajectory. The volute directs this fluid, slowing it down and converting kinetic energy into static pressure, which helps maintain flow rate and pressure as water moves through the building’s piping system.
Inside the pump casing, the volute leads to the discharge port, channeling water efficiently. The impeller blades can be rotated by hand for demonstration purposes, showing the flow direction. The shaft connects to the rotor inside the induction motor, driving the impeller. While some pumps use a belt drive, direct drive is generally more energy-efficient and requires less maintenance.
Centrifugal pumps are known for their reliability and can operate for many years, making them essential components in various systems. Their robust design and efficient operation ensure they remain a staple in engineering applications.
Thank you for exploring the workings of centrifugal pumps with us! For more insights and information, visit TheEngineeringMindset.com. If you have any questions, feel free to reach out. Happy learning!
Explore an online simulation of a centrifugal pump. Adjust parameters such as impeller speed and observe the effects on flow rate and pressure. This will help you understand the relationship between the pump’s components and its operation.
Participate in a hands-on workshop where you can disassemble and reassemble a centrifugal pump. This activity will give you a practical understanding of the pump’s components and how they work together.
Analyze a real-world case study where centrifugal pumps are used in an industrial setting. Discuss the challenges faced and the solutions implemented, focusing on the pump’s role in the system’s efficiency and reliability.
Engage in a design challenge where you create a model of a centrifugal pump system for a specific application. Consider factors like flow rate, pressure, and energy efficiency in your design.
Work in groups to prepare a presentation on the evolution of centrifugal pump technology. Highlight key innovations and their impact on modern engineering practices.
Sure! Here’s a sanitized version of the YouTube transcript:
—
Hello everyone, Paul here from TheEngineeringMindset.com. In this video, we will be exploring the centrifugal pump and learning how it operates. The centrifugal pump is the most common type of pump used in various industries, as well as in many commercial and industrial buildings. Most homes, apartments, ships, and aircraft also have at least one centrifugal pump installed. It’s quite uncommon to find a building without one.
In larger sites, especially commercial and industrial buildings, there are often multiple sets of pumps to serve different systems within the building, such as heating and cooling systems or any application where water needs to be circulated through piping.
If you’re in engineering or considering entering the field, you’ll encounter these pumps frequently, as they are ubiquitous.
In a typical setup, an induction motor is mounted at the back of the pump. A shaft connects the rotor of the motor to the pump, with the impeller attached to the shaft. When the induction motor rotates the shaft, it also rotates the impeller. Adjusting the motor’s speed changes the impeller’s rotation speed, allowing for variations in the flow rate of the system.
The centrifugal pump has two ports: an inlet and an outlet. The inlet is typically located at the center on a horizontal axis, while the outlet is positioned on a vertical axis. The inlet is referred to as the suction line, and the outlet is known as the discharge line. The impeller must always be submerged in water to ensure proper operation; otherwise, it may not draw sufficient flow, potentially leading to cavitation, which can damage the impeller.
The pump casing features a volute that runs around its circumference. The volute has an increasing diameter from the inlet to the outlet, allowing for greater water flow and an increase in mass flow rate. Water enters the pump through the inlet port and is pushed outward by the impeller’s rotation, collecting in the volute before exiting through the discharge port.
The impeller has curved veins that extend from the center to the outer edge. This design, known as the backwards curve impeller, is the most common and efficient for moving water. It’s important to note that these veins do not push water like a paddle; instead, the water flows between them, and the centrifugal force generated helps propel the water out of the pump.
As the impeller spins, it creates low pressure at the inlet, drawing fluid into the center. The outward force generated by the spinning impeller, combined with inertia, causes the fluid to exit the impeller in a spiral trajectory. The volute is shaped to direct this fluid, allowing it to slow down and convert kinetic energy into static pressure, which helps maintain flow rate and pressure as the water moves through the building’s piping system.
This is a view inside a pump casing, showing the volute leading to the discharge port. You can see how the water channels out. Inside the impeller, the blades can be rotated by hand for demonstration purposes.
This is a stock impeller showing the flow direction. The shaft connects to the rotor inside the induction motor, which drives the impeller. The pump may also use a belt drive, although direct drive is generally more energy-efficient and requires less maintenance.
These pumps are reliable and can operate for many years, serving as essential components in various systems.
Thank you for watching! I hope this video has been helpful. Please like, subscribe, and share. If you have any questions, feel free to leave them in the comments below. Also, check out our website, TheEngineeringMindset.com. Thanks for watching!
—
This version removes any informal language and maintains a professional tone while conveying the same information.
