Welcome! In this article, we will delve into the fundamental workings of a chiller, a crucial component in modern air conditioning systems. This is part of a broader series on chillers, so be sure to explore additional resources for a comprehensive understanding.
A chiller is a substantial piece of equipment designed to produce cool water for air conditioning purposes in buildings. These machines can be found in various locations, such as basements or rooftops, and come in different designs. Our focus here will be on the internal mechanisms of a chiller and how it generates chilled water while expelling heat.
The chiller’s primary function is to produce chilled water, which exits the evaporator at approximately six degrees Celsius. This water is circulated throughout the building by a centrifugal pump, entering air handling units (AHUs) to absorb unwanted heat. The warmed water, now at about twelve degrees Celsius, returns to the chiller, completing the cycle.
Heat from this process is transferred to the condenser via a refrigerant. The refrigerant acts as a medium, isolating the chilled water circuit from the condenser circuit. The heat collected in the condenser is then transferred to a cooling tower, where it is dissipated. The water returns to the condenser cooler, entering at thirty-two degrees Celsius and leaving at twenty-seven degrees Celsius.
Chillers vary in size, shape, and thermal capacity, tailored to the specific heat load of a building, which can arise from sunlight, occupants, equipment, and even the chiller itself. Centralized chilled water systems are often more economical and efficient than smaller units on each floor, especially in large buildings or critical environments. Typically, multiple chillers are installed, with an extra unit for redundancy.
Understanding a chiller involves recognizing its four main components: the evaporator, condenser, compressor, and expansion valve. Each plays a vital role in the chiller’s operation, and the system cannot function without them.
The evaporator collects unwanted heat from the building and returns it to the chiller. The refrigerant absorbs this heat as it passes through the evaporator.
The compressor provides the necessary pressure to circulate the refrigerant through the system.
In the condenser, the refrigerant releases the absorbed heat to the condenser circuit, which is connected to the cooling towers.
The expansion valve allows the refrigerant to expand, enabling it to absorb more heat when it re-enters the evaporator.
There are three main circuits in a chiller:

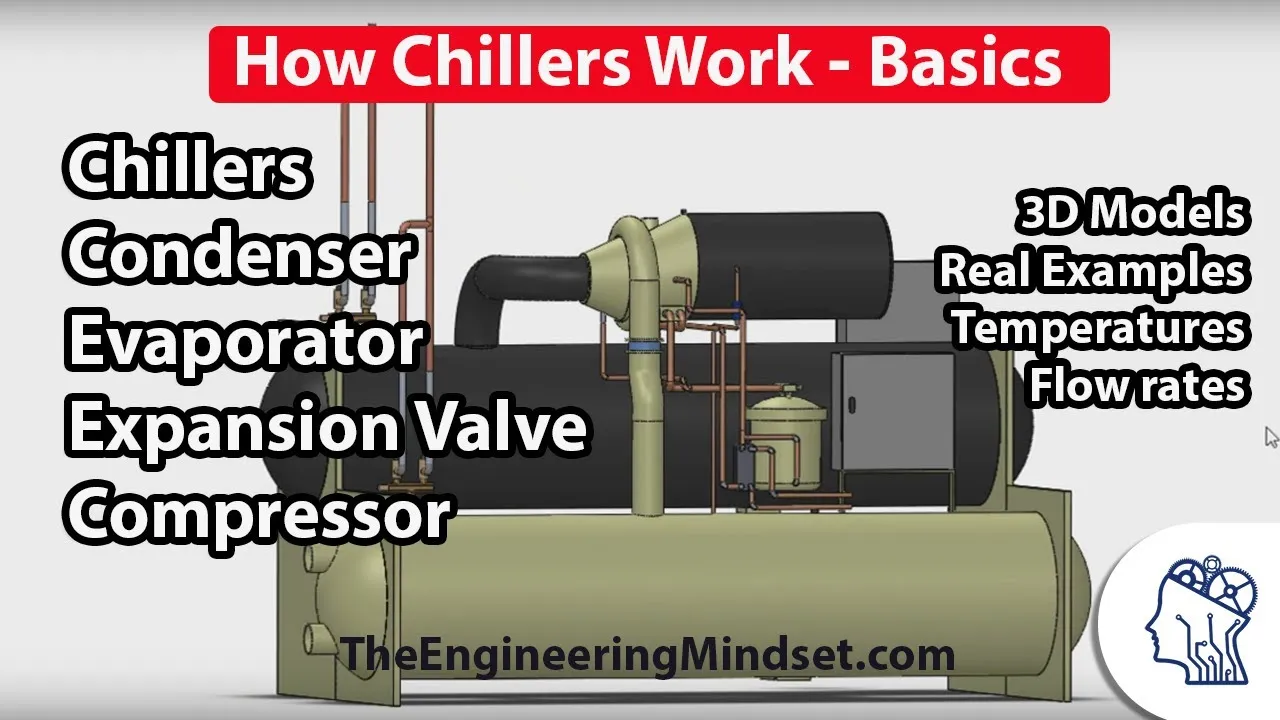

Let’s consider a centrifugal chiller, such as a McQuay chiller. Visualizing its components can help solidify your understanding. The compressor, driven by a large electric motor, is located at the top. Below it is the condenser, where water enters and exits. The expansion valve is at the bottom, allowing refrigerant to flow from the condenser to the evaporator. The evaporator, similar in design to the condenser, completes the system.
As you explore real-life chiller systems, try to identify these components and understand their functions within the system.
Thank you for exploring the basics of chillers with us! For more in-depth information, be sure to check out additional resources and engage with our community online.
Create an interactive diagram of a chiller system using software like Lucidchart or draw.io. Label each component, such as the evaporator, compressor, condenser, and expansion valve. Share your diagram with classmates and explain how each part contributes to the chiller’s operation.
Participate in a virtual tour of a chiller plant. Many universities or companies offer online tours of their facilities. Observe the real-world application of chillers and note how the theoretical concepts you’ve learned are applied in practice.
Analyze a case study of a building that uses a centralized chilled water system. Discuss the advantages and challenges of using such a system compared to individual units. Present your findings in a group presentation.
Calculate the efficiency of a chiller system using given data on temperature and energy consumption. Work in pairs to solve these calculations and discuss how efficiency impacts the overall energy consumption of a building.
Engage in a role-playing activity where each student represents a component of the chiller system. Act out the process of chilling water, transferring heat, and dissipating it through the cooling tower. This will help you understand the flow and interaction between components.
Sure! Here’s a sanitized version of the YouTube transcript:
—
Hello, YouTube! It’s Paul here from TheEngineeringMindset.com. In this video, we’re going to explore the basic operation of a chiller, which will be part of a series on the subject. Don’t forget to check out our other videos and our website.
First, let’s define what a chiller is and what it does. A chiller is a large piece of machinery used to generate cool water for air conditioning in buildings. In the animation, you can see a chiller located in the basement, and there are also rooftop chillers with different designs. In this video, we’ll focus on the internal workings of the chiller and how it produces chilled water for air conditioning while rejecting heat.
The chilled water produced in the evaporator leaves at approximately six degrees Celsius. A centrifugal pump circulates this water throughout the building, where it enters air handling units (AHUs) that collect unwanted heat. This heat is then returned to the chiller at around twelve degrees Celsius. The cycle continues, with the water leaving the chiller at six degrees Celsius and returning at twelve degrees Celsius.
The heat from this circuit is transferred via a refrigerant to the condenser. These two systems are isolated from each other, with the refrigerant transferring heat between them. The heat collected in the condenser is then pumped to the cooling tower, where a fan dissipates the heat from the building. The water returns to the condenser at a cooler temperature, entering at thirty-two degrees Celsius and returning at twenty-seven degrees Celsius.
Chillers come in various shapes, sizes, and thermal ratings, depending on the heat produced by the building, which can come from sunlight, occupants, equipment, and even the chiller itself. The system is designed to handle this heat and provide adequate cooling.
In this example, the chilled water system is centralized, as smaller air conditioning units on each floor would not suffice. It is more economical to install a large central plant system to produce chilled water. Typically, you would have multiple chillers, often with one additional unit for redundancy, especially in critical environments.
Now, let’s examine the components of a chiller. I recommend grabbing a piece of paper and a pen to take notes. There are four main components found in every chiller: the evaporator, the condenser, the compressor, and the expansion valve. Each of these components is essential for the chiller’s operation; the system cannot function without any one of them.
There are three main circuits in a chiller: the refrigeration circuit, which involves the refrigerant moving through the components and transferring heat; the chilled water loop, which collects heat from the building and returns it to the chiller; and the condenser circuit, which sends heat to the cooling towers.
The evaporator in the chilled water circuit collects unwanted heat from the building and returns it to the chiller. The refrigerant passes through the evaporator, picking up heat and then moving to the compressor, which creates the pressure needed to circulate the refrigerant. The refrigerant then enters the condenser, where it releases heat to the condenser circuit, which is connected to the cooling towers.
The expansion valve allows the refrigerant to expand, enabling it to absorb more heat when it re-enters the evaporator. These four components and three circuits are fundamental to all types of chillers.
Now, let’s apply this knowledge to a real-world example. This is a centrifugal chiller, specifically a McQuay chiller. We will identify the components and relate them to the illustrations we’ve discussed. I have created a 3D model to help visualize the chiller’s layout.
At the top, we have the compressor, which is driven by a large electrical motor. The condenser is located below, where the water enters and exits. The expansion valve is positioned at the bottom, allowing refrigerant to leave the condenser and enter the evaporator. The evaporator is another large cylinder, similar in design to the condenser.
As we explore the model, remember the functions of each component. The chilled water enters and leaves through the evaporator, while the refrigerant circulates through the system, driven by the compressor.
I encourage you to test your knowledge by identifying the components in a real-life chiller photo. Take a moment to think about what each part is and how it functions within the system.
Thank you for watching this video! Please remember to subscribe and check out the links for more videos you might find interesting. We’re also active on social media and our website. Thank you!
—
This version maintains the informative content while removing any informal language and extraneous details.
Chiller – A device used to remove heat from a liquid via a vapor-compression or absorption refrigeration cycle. – The chiller in the HVAC system efficiently cools the building by circulating chilled water.
Refrigerant – A substance used in a heat cycle to transfer heat from one area and remove it to another, commonly used in air conditioning and refrigeration systems. – Engineers must carefully select a refrigerant that is both efficient and environmentally friendly for the new cooling system.
Evaporator – A component in a refrigeration system where the refrigerant absorbs heat and evaporates, cooling the surrounding environment. – The evaporator coil is crucial for the air conditioning unit as it absorbs heat from the indoor air.
Condenser – A device or unit used to condense a gaseous substance into a liquid state through cooling, often found in refrigeration systems. – The condenser releases the absorbed heat from the refrigerant to the outside environment.
Compressor – A mechanical device that increases the pressure of a gas by reducing its volume, essential in refrigeration and air conditioning systems. – The compressor is the heart of the refrigeration cycle, as it pumps the refrigerant through the system.
Expansion – The process of increasing in volume or size, often referring to the expansion of gases in thermodynamic systems. – The expansion valve in the refrigeration cycle reduces the pressure of the refrigerant, allowing it to expand and cool.
Water – A fluid commonly used as a coolant in various engineering systems due to its high specific heat capacity and availability. – The cooling tower uses water to dissipate heat from the chiller system into the atmosphere.
Heat – A form of energy transfer between systems or objects with different temperatures, often studied in thermodynamics. – Engineers must calculate the heat transfer rate to design efficient thermal management systems.
Circuit – A closed loop through which an electric current flows or may flow, used in various electronic and electrical systems. – The electrical circuit was designed to ensure minimal resistance and maximum efficiency.
System – A set of interacting or interdependent components forming an integrated whole, often used in engineering to describe complex assemblies. – The HVAC system in the building is designed to maintain optimal indoor air quality and comfort.
