Welcome! Today, we are diving into the fascinating world of heat pumps, exploring their various types and understanding how they function. Heat pumps are an essential part of modern HVAC systems, providing both heating and cooling solutions. Let’s break down the different types of heat pumps, including air-to-air, air-to-water, ground source, and water source heat pumps, and see how each operates.
Heat pumps are devices that transfer heat from one place to another, using a small amount of energy. They are highly efficient because they move heat rather than generate it. This efficiency makes them a popular choice for both residential and commercial heating and cooling needs.
Air-to-air heat pumps are the most common type and are similar in appearance to standard air conditioning units. They consist of an outdoor unit and an indoor unit. These systems can provide both heating and cooling by using a component called a reversing valve. In heating mode, the system extracts heat from the outside air and transfers it indoors. In cooling mode, it works like a typical air conditioner, removing heat from inside and releasing it outside.
The system includes several key components: a compressor, reversing valve, indoor and outdoor heat exchangers, expansion valves, and various sensors. In heating mode, the refrigerant circulates through these components, absorbing and releasing heat to maintain a comfortable indoor temperature.
Air-to-water heat pumps operate similarly to air-to-air systems but transfer heat to water instead of air. The refrigerant leaves the compressor and enters a heat exchanger, where it transfers heat to water stored in a tank. This heated water can then be used for domestic hot water or space heating. The cycle repeats as the refrigerant moves through the system, continuously heating the water.
Ground source heat pumps, also known as geothermal heat pumps, extract heat from the ground. They come in two main configurations: horizontal and vertical. Both types use a network of pipes buried in the ground to collect heat. The system can be used for both heating and cooling, with a reversing valve enabling the switch between modes. Ground source heat pumps are highly efficient because the ground maintains a relatively constant temperature throughout the year.
Water source heat pumps utilize water bodies such as ponds, rivers, or aquifers to collect heat. There are two main types: closed loop and open loop systems. Closed loop systems circulate a water-antifreeze mixture through pipes submerged in the water source, while open loop systems draw water directly from the source. These systems are effective in areas with accessible water bodies and can provide efficient heating and cooling solutions.
Heat pumps are a versatile and energy-efficient solution for heating and cooling needs. By understanding the different types and how they operate, you can make informed decisions about which system best suits your requirements. Whether it’s an air-to-air, air-to-water, ground source, or water source heat pump, each offers unique benefits and can contribute to a sustainable and comfortable living environment.
Thank you for exploring the world of heat pumps with us. We hope this article has provided valuable insights into how these systems work and their advantages. For further information and resources, consider exploring additional educational materials and case studies on heat pump technology.
Create a detailed diagram of a heat pump system of your choice (air-to-air, air-to-water, ground source, or water source). Use online tools or drawing software to illustrate the components and their functions. Present your diagram to the class, explaining how each part contributes to the system’s operation.
Select a real-world example of a heat pump installation. Research its implementation, challenges faced, and the benefits it provided. Prepare a short presentation or report discussing your findings and how they relate to the concepts covered in the article.
Using provided data or hypothetical scenarios, calculate the energy efficiency of different types of heat pumps. Compare these efficiencies to traditional heating and cooling systems. Discuss your results with peers to understand the practical implications of using heat pumps.
Participate in a debate on the environmental impact of heat pumps versus traditional HVAC systems. Research both sides of the argument, focusing on energy consumption, carbon footprint, and sustainability. Present your arguments and engage in a discussion with classmates.
Organize a field visit to a facility using heat pump technology or take a virtual tour of such a facility. Observe the system in operation and interact with professionals to gain insights into the practical aspects of heat pump installation and maintenance.
Sure! Here’s a sanitized version of the transcript:
—
Hello everyone, Paul here from theengineeringmindset.com. In this video, we will discuss heat pumps, the different types, and how they work. We’ll cover topics such as how heat pumps operate, air-to-air heat pumps, air-to-water heat pumps, ground source heat pumps, and water source heat pumps, along with animations and system schematics for each type.
I want to take a moment to thank our partner, Danfoss, for sponsoring this video. A critical aspect of heat pumps is their energy efficiency, and Danfoss provides everything you need to ensure your heat pump operates at what they call 360-degree energy efficiency. They have created a dedicated website featuring business cases, case studies, e-lessons, and a helpful diagram similar to those on this channel. You can find the link in the video description below to learn more about 360-degree energy efficiency.
Let’s start with air-to-air heat pumps. These are the most common type and often resemble standard air conditioning split units, with one unit located outside and another inside. They can function as heating-only devices or, more commonly, as units that provide both heating and cooling using a reversing valve. We have previously covered reversing valves, and you can find those links in the video description.

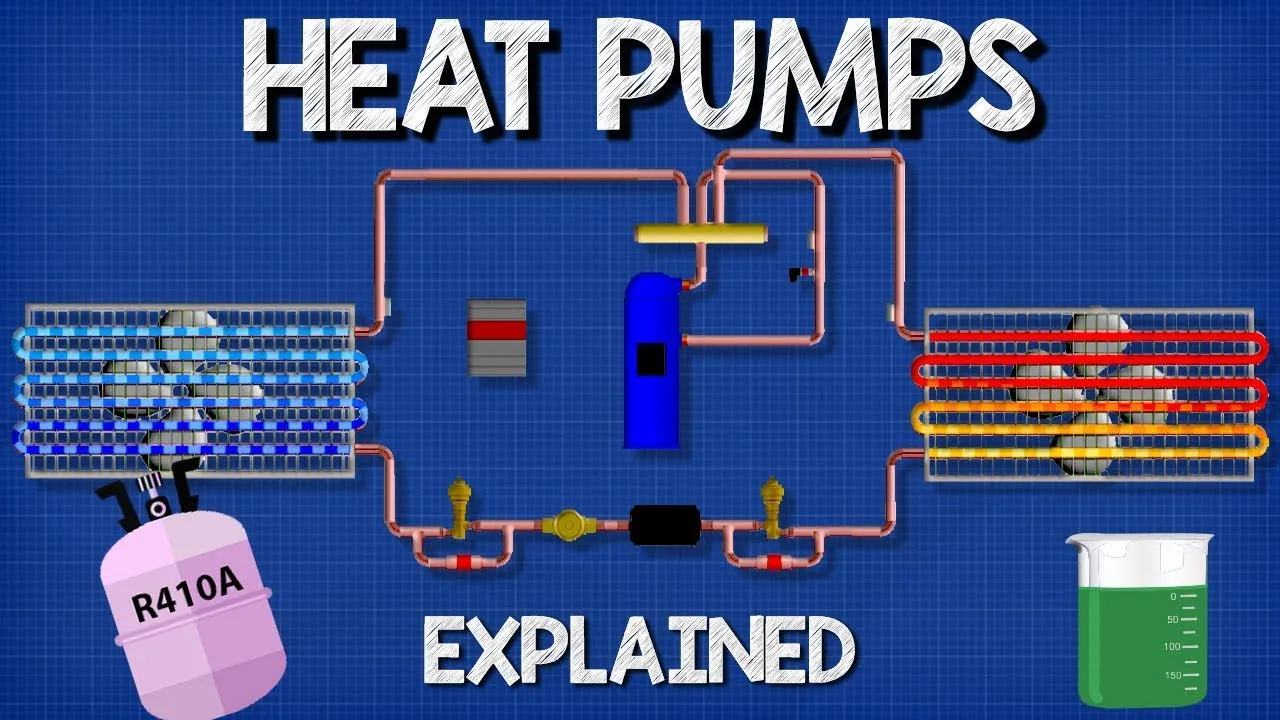

There are several ways to configure a reversing valve heat pump. A typical system includes components such as the compressor, reversing valve, indoor heat exchanger, expansion valve with a non-return valve bypass, bi-directional filter drier, sight glass, and another expansion valve with a non-return valve and bypass. We also have the outdoor heat exchanger, a controller, and various temperature and pressure sensors throughout the system.
In heating mode, the refrigerant exits the compressor as a high-pressure, high-temperature vapor and passes through the reversing valve to the indoor unit. Cool air is blown over the indoor unit’s heat exchanger, extracting thermal energy and heating the room. As heat is removed, the refrigerant condenses into a liquid and exits as a high-pressure, slightly cooler liquid. It then goes to the expansion valve, where it passes through a non-return valve and continues through the filter drier and sight glass to the second expansion valve. The refrigerant expands in volume and turns into a part-liquid, part-vapor mixture, which reduces its temperature and pressure.
The refrigerant then moves to the outdoor heat exchanger, where a fan blows outside air over the coil, adding heat to the cold refrigerant. The refrigerant boils at low temperatures, carrying away thermal energy. For example, refrigerant R134a has a boiling point of -26.3 degrees Celsius, while R410a has a boiling point of -48.5 degrees Celsius. This allows for effective thermal energy extraction even at low outdoor temperatures.
The refrigerant picks up thermal energy from the outside air and leaves the outdoor heat exchanger as a low-pressure, low-temperature, slightly superheated vapor, returning to the compressor to repeat the cycle. In cooling mode, the system operates like a standard split air conditioner, with the compressor forcing high-pressure vapor refrigerant into the reversing valve, which directs it to the outdoor unit. The outdoor fan blows cooler air across the heat exchanger, causing the refrigerant to condense and lose thermal energy.
Next, let’s discuss air-to-water heat pumps. These units operate similarly to air-to-air heat pumps but without a reversing valve. The high-pressure vapor refrigerant leaves the compressor and enters a plate heat exchanger, where it transfers heat to water cycling through a hot water storage tank. The cooled water absorbs heat from the refrigerant and returns to the tank, repeating the cycle. The refrigerant then passes through the filter drier and sight glass into the expansion valve, where it becomes a part-liquid, part-vapor mixture at low temperature and pressure before moving to the outdoor heat exchanger to boil and repeat the cycle.
Ground source heat pumps come in two main types: horizontal and vertical. Both types work similarly, differing mainly in how they access heat from the ground. Ground source heat pumps can be used for heating air or water. In air systems, a reversing valve allows for heating or cooling. The outdoor heat exchanger can be a plate heat exchanger, with refrigerant on one side and a water-antifreeze mixture on the other, which is pumped through the ground to collect thermal energy.
Water source heat pumps have two main variations: closed loop and open loop. Closed loop systems send a water-antifreeze mixture to collect thermal energy from a pond or river, while open loop systems pull fresh water from an aquifer or river to collect heat and return it to the source.
Before concluding, I want to thank Danfoss once again for sponsoring this video. Don’t forget to check out their heat pump solutions by clicking the link in the video description below.
Thank you for watching! I hope you found this video helpful. If you did, please like, subscribe, and share. Leave your questions in the comments, and follow us on social media and at theengineeringmindset.com. Thanks again for watching!
—
This version maintains the informative content while removing any informal language and ensuring clarity.
Heat – A form of energy transfer between systems or objects with different temperatures, flowing from the higher temperature to the lower temperature. – In thermodynamics, heat is often transferred through conduction, convection, or radiation.
Pumps – Devices used to move fluids or gases by mechanical action, often used in engineering systems to circulate liquids or gases. – Centrifugal pumps are commonly used in water supply systems to ensure a steady flow of water.
Energy – The capacity to do work or produce change, existing in various forms such as kinetic, potential, thermal, electrical, and chemical. – The conservation of energy principle is fundamental in analyzing mechanical systems.
Refrigerant – A substance used in a heat cycle to transfer heat from one area to another, commonly used in air conditioning and refrigeration systems. – The choice of refrigerant can significantly impact the efficiency and environmental impact of a cooling system.
Temperature – A measure of the average kinetic energy of the particles in a system, indicating how hot or cold the system is. – Engineers must consider temperature variations when designing materials for thermal expansion.
Efficiency – The ratio of useful output to total input in any system, often expressed as a percentage, indicating how well the system performs its intended function. – Improving the efficiency of a heat engine can lead to significant energy savings.
Heating – The process of energy transfer that increases the temperature of a system, often used in residential and industrial applications. – Radiant floor heating is an efficient method of warming a space by circulating warm water through pipes embedded in the floor.
Cooling – The process of removing heat from a system to lower its temperature, commonly used in air conditioning and refrigeration. – Evaporative cooling is an energy-efficient method used in dry climates to reduce air temperature.
Systems – Interconnected components that work together to perform a specific function, often analyzed in engineering to optimize performance and reliability. – Control systems engineering involves designing systems that maintain desired outputs despite external disturbances.
Geothermal – Relating to the heat derived from the earth’s internal processes, often used as a renewable energy source for heating and electricity generation. – Geothermal energy systems can provide sustainable heating solutions by tapping into the earth’s natural heat.
