The 12-volt lead-acid car battery is a crucial part of every vehicle with a combustion engine. It’s a big and heavy battery that helps your car start and keeps it running smoothly. Let’s dive into how it works and why it’s so important.
A 12-volt car battery is called a lead-acid battery because it contains lead plates submerged in an acid solution. This setup creates a chemical reaction that releases energy, which is then used to provide voltage and current. The battery stores energy as chemical energy, not electricity, and converts it into electrical energy when needed.
One of the cool things about lead-acid batteries is that they are rechargeable. By supplying electricity back to the battery, we can reverse the chemical reaction and recharge it. These batteries can provide a lot of current, especially compared to smaller household batteries.
The car battery is usually found in the engine bay. Its first job is to start the engine by powering a small motor called the starter motor. This motor turns the engine’s flywheel to get the combustion engine running. Once the engine starts, the starter motor stops working.
The starter motor uses a lot of energy, so the battery needs to be recharged. This is where the alternator comes in. The alternator is connected to the engine and generates electricity as it rotates. This electricity recharges the battery and powers other electrical components like lights and the music system.

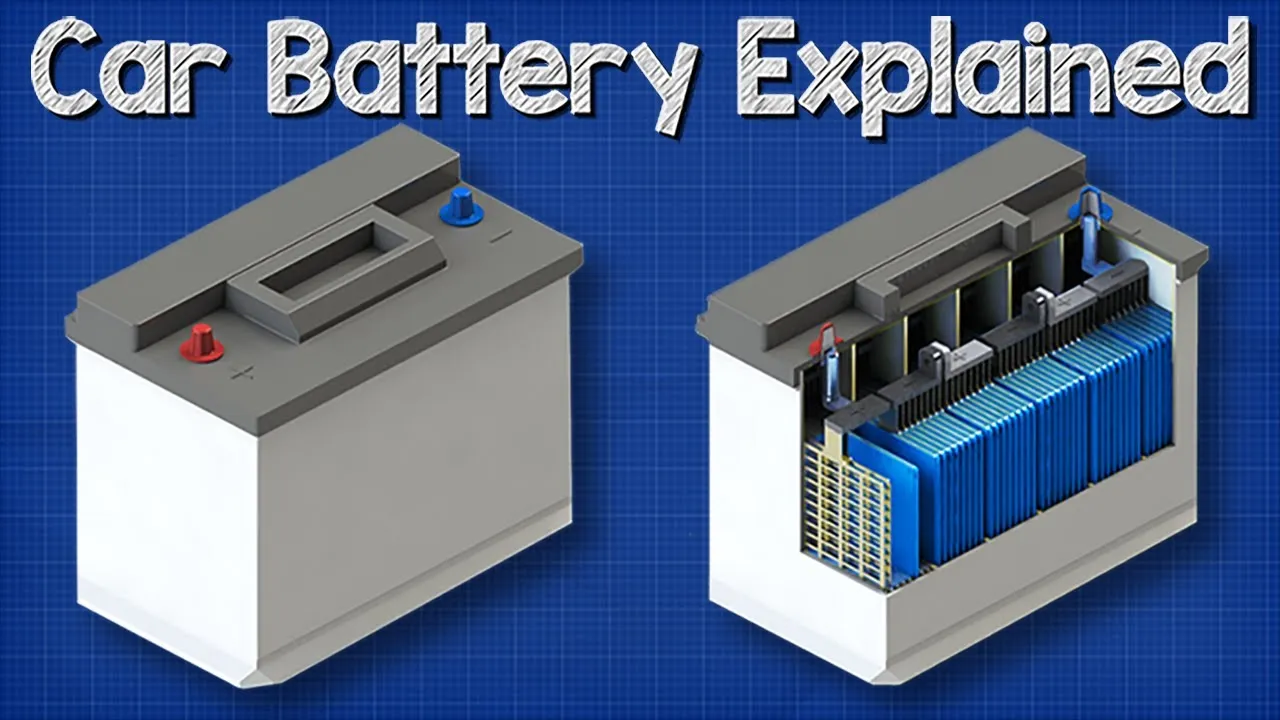

Let’s look inside a car battery. It has a plastic case with two terminals on top: positive and negative. Inside, the case is divided into six chambers, each called a cell. Each cell produces about 2.1 volts, and together they provide around 12.6 volts.
Each cell contains lead plates that are coated with a paste of lead oxide. These plates are connected by straps made of lead. The chemical reaction happens here, releasing electrons that flow through the battery and power the car’s electrical system.
Electricity is the flow of electrons through a circuit. In a battery, electrons flow from the negative terminal to the positive terminal. This flow is called current. There are two types of electricity: direct current (DC), which flows in one direction, and alternating current (AC), which changes direction.
The battery’s electrolyte is a mix of sulfuric acid and water. The positive plate (cathode) is made of lead oxide, and the negative plate (anode) is made of pure lead. When the battery is in use, a chemical reaction occurs, creating lead sulfate and releasing electrons. These electrons flow through the circuit, powering the car.
To check if a car battery is healthy, you can use a multimeter set to DC voltage. Connect the red lead to the positive terminal and the black lead to the negative terminal. A healthy battery should read around 12.6 volts. If it reads below 12 volts, the battery might need attention.
When you start the car, the voltage will drop because the starter motor uses a lot of energy. Once the engine is running, the alternator should recharge the battery, showing around 14 volts.
Understanding how a car battery works helps you appreciate its role in keeping your vehicle running smoothly. It’s a fascinating mix of chemistry and electricity that powers your car every day!
Gather materials like copper and zinc strips, a lemon, and wires to create a simple battery. Connect the strips to the lemon and use wires to light up a small LED. This activity will help you understand the basic principles of how a battery generates electricity through chemical reactions.
Use an online circuit simulator to build a virtual car battery circuit. Experiment with different components like resistors and switches to see how they affect the flow of electricity. This will give you a hands-on understanding of how circuits work in a car’s electrical system.
Watch a demonstration on how to use a multimeter to check a car battery’s health. Then, practice using a multimeter on a classroom battery setup. This will teach you how to measure voltage and interpret the readings to assess battery condition.
Participate in a role-playing activity where you act out the journey of electrons from the battery through the car’s electrical system. This will help you visualize and understand the flow of electricity and the role of different components like the starter motor and alternator.
Work in groups to create a guide on how to maintain a car battery. Include tips on checking voltage, cleaning terminals, and ensuring proper charging. Present your guide to the class to reinforce your understanding of battery care and maintenance.
Sure! Here’s a sanitized version of the YouTube transcript:
—
[Applause] The 12-volt lead-acid car battery is a large and relatively heavy battery used in every combustion engine vehicle globally. It is an essential component of the vehicle. In this video, we will explore what it does and how it works.
The 12-volt car battery looks like this. It is called a lead-acid battery because it contains lead plates submerged in an acid solution. This creates a chemical reaction that releases energy, providing voltage and current. The battery stores energy in the form of chemical energy, not electricity. This chemical energy is converted into electrical energy when needed.
This battery is also rechargeable. By supplying electricity to the battery, we can reverse the chemical reaction and recharge it. Lead-acid batteries provide large amounts of current, especially compared to typical smaller household alkaline batteries. We have covered how alkaline batteries work in a previous video; links can be found in the video description below.
The typical car battery is located in the engine bay. It is first used to start the engine by providing electricity to a small electrical motor known as the starter motor. The starter motor engages a small gear onto the engine’s flywheel, turning it to start the combustion engine. Once the engine is running, the starter motor disengages.
The starter motor requires a significant amount of force to turn the flywheel, drawing a large current, possibly hundreds of amps, but only for a few seconds. This high current demand reduces the battery’s energy storage, so it needs to be recharged.
Connected to the engine is an alternator, which is rotated by the engine. As it rotates, it generates electricity that is fed back into the battery to recharge it. While the engine is running, the alternator recharges the battery and provides electrical power for lights and the music system. If the demand for electricity exceeds what the alternator can provide, the battery supplies the additional power, which drains it.
When the engine is off, the alternator stops rotating and recharging the battery, so the battery provides all the electrical power to the car until it is depleted. At this point, the battery may not have enough electricity to start the engine, requiring a jump start.
Let’s look at the main parts of a car battery to understand how it works. First, there is the plastic case that holds all the internal components. On top, there are two terminals: positive and negative. Removing the lid reveals that the casing is divided into six separate chambers, each separated by a plastic wall. Each chamber is known as a cell, generating around 2.1 volts of direct current (DC). The cells are connected in series, with the negative of one cell connected to the positive of the next, resulting in a total voltage of around 12.6 volts.
Each cell is connected via a plate strap made from lead, welded together through the plastic wall to form the connection. Current flows through the battery cells from positive to negative, following conventional current theory. However, electrons actually flow in the opposite direction, from negative to positive.
Each cell contains two plate straps: one positive and one negative. These straps connect to lead plates formed into grid structures to maximize surface area. The grids are coated in a paste of lead oxide, where the chemical reaction occurs. The paste absorbs some of the electrolyte liquid, improving battery performance.
The size of the plates determines how much current a battery can provide, but it does not change the voltage. The materials used for the chemical reaction and the number of plates determine the voltage produced by each cell. The grid holds the paste in place, ensuring uniform current distribution across a plate and helping transport electrons out of the battery and around the car’s electrical circuit.
The negative plate is the anode, made of pure lead, while the positive plate is the cathode, made from lead oxide. These dissimilar materials form the chemical reaction and release electrons. To prevent direct contact between the positive and negative plates, each positive plate is placed in a porous separator that allows ions to flow through without direct contact.
The chamber is filled with an electrolyte liquid of sulfuric acid and water, hence the name lead-acid battery.
To understand how the battery works, it’s important to recap the fundamentals of electricity. Electricity is the flow of electrons in a circuit. We need a significant flow of electrons in the same direction through a wire to power devices like light bulbs. When many electrons flow in the same direction, we call this current.
Every material is made from atoms, which have different numbers of protons, neutrons, and electrons. Some materials, like copper, have electrons that can move freely. When we connect a power supply, like a battery, to a copper wire, the battery’s voltage pushes the electrons toward the positive terminal.
Electrons flow from negative to positive, known as electron flow. This is the actual process occurring, while conventional current theory assumes current flows from positive to negative. Although the original theory was proven incorrect, it is still used in electrical circuit design.
There are two types of electricity: direct current (DC), which comes from batteries, where electrons flow in one direction, and alternating current (AC), which comes from power outlets, where electrons move back and forth.
When we mix certain materials, we can cause chemical reactions, where atoms interact, bond, or break apart. An ion is an atom with an unequal number of protons or electrons. An atom has a neutral charge when it has the same number of protons and electrons. If it has more electrons, it becomes a negative ion; if it has more protons, it becomes a positive ion.
To simplify, we can model a cell with a single cathode and anode. The electrolyte liquid consists of one-third sulfuric acid and two-thirds water. The positive electrode (cathode) is made from lead oxide, and the negative terminal (anode) is made from pure lead.
When these materials combine, a small chemical reaction occurs. The positive cathode terminal reacts with sulfate in the electrolyte, forming a layer of lead sulfate on the cathode. During this reaction, an oxygen ion is released into the electrolyte, where it combines with hydrogen ions to form water. Simultaneously, lead atoms on the anode react with sulfate ions, creating a layer of lead sulfate around the electrode and releasing two electrons collected at the negative terminal.
This buildup of electrons on the negative terminal creates a difference in charge across the two terminals. If we provide a path for the electrons, such as a wire, they will flow to the positive terminal, allowing us to power devices like lamps.
While the path exists, the chemical reaction continues, but it won’t last forever. The chemicals required for the reaction will deplete, the acid will weaken, and lead sulfate will accumulate on the electrodes, making the reaction harder to achieve. Fortunately, this chemical reaction can be reversed by supplying electricity from the alternator, allowing the battery to recharge.
To test the voltage of a car battery, switch to the DC voltage setting on a multimeter, connecting the red lead to the positive terminal and the black lead to the negative terminal. A healthy battery should show around 12.6 volts. If it drops below 12 volts, the battery may not be functioning properly. When starting the car, the voltage will drop due to the starter motor’s high current demand. Once the engine is running, the alternator should generate around 14 volts to recharge the battery.
Thank you for watching! If you’re interested in creating your own online presence, check out squarespace.com for a free trial. When you’re ready to launch, use the code provided to save on your first purchase.
For more learning, check out one of the videos on screen now, and I’ll catch you in the next lesson. Don’t forget to follow us on social media and visit engineeringmindset.com.
—
This version removes promotional content and maintains the educational focus of the transcript.
Battery – A device that stores chemical energy and converts it into electrical energy to provide power to electronic devices. – Example sentence: The battery in the remote control needs to be replaced because it no longer powers the device.
Energy – The capacity to do work or produce change, often measured in joules or calories. – Example sentence: Solar panels convert sunlight into electrical energy to power homes and businesses.
Current – The flow of electric charge through a conductor, typically measured in amperes. – Example sentence: The electric current flowing through the wire was strong enough to light up the bulb.
Voltage – The difference in electric potential energy between two points in a circuit, measured in volts. – Example sentence: The voltage across the battery terminals determines how much energy it can supply to a device.
Chemical – Relating to substances and their interactions, especially in the context of energy transformations. – Example sentence: The chemical reaction in a battery generates electricity to power electronic devices.
Reaction – A process in which substances interact to form new substances, often releasing or absorbing energy. – Example sentence: The reaction between hydrogen and oxygen in a fuel cell produces electricity and water.
Electrons – Negatively charged particles that move through conductors to create electric current. – Example sentence: Electrons flow from the negative to the positive terminal of a battery, creating an electric current.
Starter – A device used to initiate the operation of an engine or motor by providing the necessary energy to start it. – Example sentence: The car’s starter motor uses electricity from the battery to start the engine.
Alternator – A device that converts mechanical energy into electrical energy, typically used in vehicles to charge the battery and power the electrical system. – Example sentence: The alternator in the car ensures that the battery remains charged while the engine is running.
Electricity – A form of energy resulting from the existence of charged particles, used to power devices and appliances. – Example sentence: Electricity is essential for powering lights, computers, and many other devices in our homes and schools.
