Welcome to an exploration of the fascinating world of DC motors, brought to you by The Engineering Mindset. DC motors are essential devices that transform electrical energy into mechanical energy, and they are commonly found in various applications such as power tools, toy cars, and cooling fans. Let’s dive into the inner workings of these motors and understand how they operate.

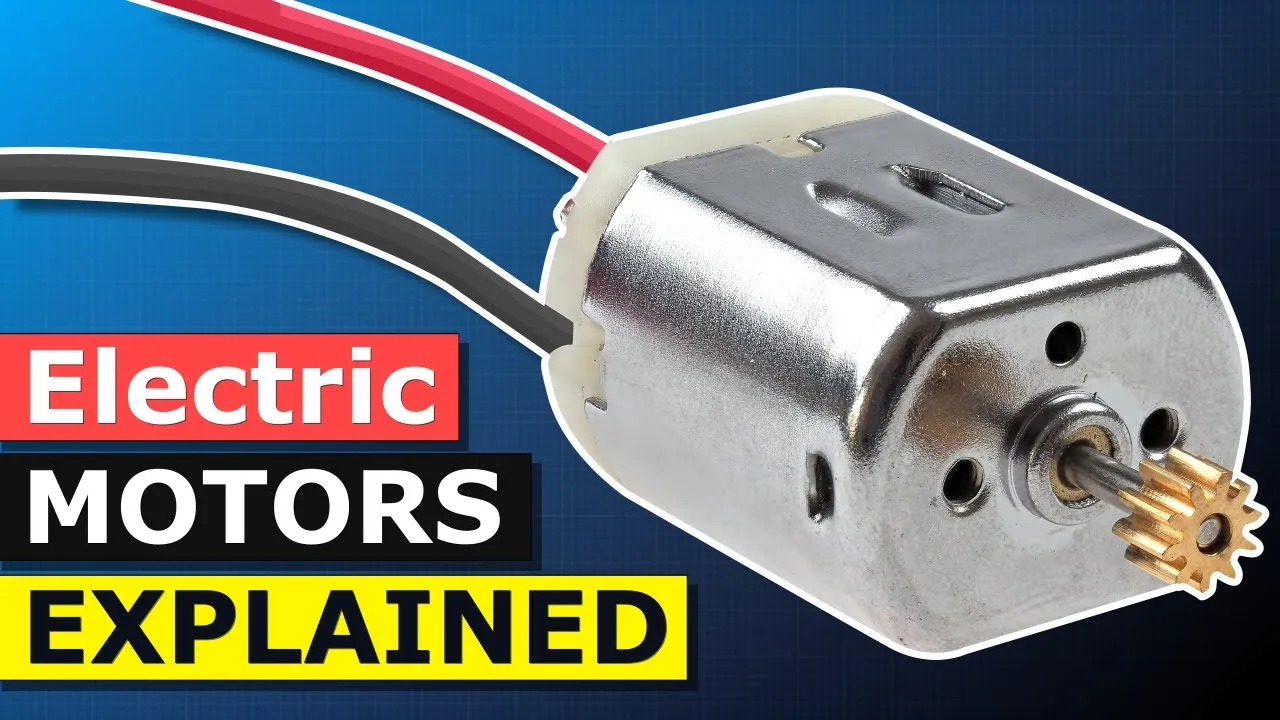

A typical DC motor is housed within a metal casing known as the stator. This casing provides protection and stability. At one end of the motor, there is a shaft that can be connected to gears, fan blades, or pulleys to perform mechanical work. The opposite end features a plastic end cap with two terminals for connecting the power supply.
Inside the motor, two permanent magnets create a north and south pole. The rotor, which is attached to the shaft, is composed of laminated disks. These disks have T-shaped arms, around which coil windings are wrapped. When electrical current flows through these coils, an electromagnetic field is generated, causing the rotor to rotate.
The ends of the coil windings are connected to the commutator, a segmented ring that is electrically isolated from the shaft. Brushes make contact with the commutator segments, completing the circuit and allowing electricity to flow through the coils. This flow of electricity is what drives the rotation of the motor.
To comprehend how a DC motor functions, it’s crucial to understand some basics of electricity. Electricity involves the flow of electrons through a wire. In direct current (DC) electricity, electrons move in a single direction from one terminal of a battery to the other. Voltage acts like pressure, pushing electrons to move through a complete circuit.
Magnets have north and south poles, and their magnetic fields interact with each other. When a wire is connected to a battery, a current of electrons flows through it, creating an electromagnetic field. Wrapping the wire into a coil amplifies this field, which is why coils are used in the rotor of a DC motor.
The simplest DC motor consists of a single coil, but using multiple coils results in smoother rotation. These coils are positioned 120 degrees apart, and the commutator plates are electrically isolated from each other. The rotor’s laminated disks help reduce eddy currents, enhancing motor efficiency.
Fleming’s left-hand rule is a useful tool for determining the direction of force within the motor. By using your left hand, you can visualize the direction of conventional current, the magnetic field, and the resulting force.
During operation, the rotor coils and commutator rotate while the magnets remain stationary. The flow of conventional current through the coils generates upward and downward forces, leading to rotation. Reversing the power supply will change the direction of the current and, consequently, the direction of rotation.
Thank you for joining this exploration of DC motors. To further your understanding, consider watching additional educational videos from The Engineering Mindset. Stay connected with us on social media and continue your learning journey.
Gather basic materials such as a battery, copper wire, magnets, and a paperclip to construct a simple DC motor. This hands-on activity will allow you to observe the principles of electromagnetism and motor operation in action. Document each step of your construction process and explain how each component contributes to the motor’s function.
Use online simulation tools to explore the inner workings of a DC motor. Adjust variables such as voltage, coil turns, and magnetic field strength to see how they affect motor performance. Reflect on how these changes impact the motor’s speed and torque, and present your findings in a short report.
In small groups, discuss the role of the commutator and brushes in a DC motor. Consider how these components facilitate the flow of electricity and the challenges they might present in motor design. Prepare a brief presentation summarizing your group’s insights and potential improvements for these components.
Conduct an experiment to apply Fleming’s left-hand rule. Use a simple setup with a magnet, a wire, and a power source to visualize the direction of force. Record your observations and explain how this rule helps predict the motor’s rotation direction. Share your results with classmates to compare findings.
Research a real-world application of DC motors, such as in electric vehicles or household appliances. Analyze how the motor’s design and operation principles are applied in this context. Write a case study report detailing the motor’s role, benefits, and any challenges faced in its application.
Here’s a sanitized version of the provided YouTube transcript, with unnecessary filler words and informal language removed for clarity:
—
Hello, Paul here from The Engineering Mindset. In this video, we will explore the basics of DC motors. DC motors are used to convert electrical energy into mechanical energy and can be found in power tools, toy cars, and cooling fans.
A DC motor typically consists of a metal protective casing, which forms the stator. At one end, there is a shaft that can be attached to gears, fan blades, or pulleys. The other end has a plastic end cap with two terminals for connecting the power supply.
Inside the motor, we find two permanent magnets that create a north and south pole. The shaft transfers mechanical energy, and the rotor, made of laminated disks, is attached to the shaft. Each disk has T-shaped arms cut into them, and coil windings wrap around these arms, carrying electrical current from the battery. As current passes through the coils, it generates an electromagnetic field, which we control to create rotation.
The ends of the coils connect to the commutator, a segmented ring that is electrically isolated from the shaft. The brushes rub against the commutator segments to complete the circuit, allowing electricity to flow through the coils and generate rotation.
To understand how the DC motor works, we need to grasp some fundamentals of electricity. Electricity is the flow of electrons through a wire. In DC electricity, electrons flow in one direction from one terminal of a battery to the other. When we apply voltage, it acts like pressure, forcing electrons to move in a complete circuit.
Magnets have north and south poles, and their magnetic fields interact with each other. When we connect a wire to a battery, a current of electrons flows through the wire, generating an electromagnetic field. Wrapping the wire into a coil strengthens this field, which is why coils are used in the rotor.
The simplest DC motor has a single coil, but multiple coils provide smoother rotation. Each coil is positioned 120 degrees apart, and the commutator plates are electrically isolated from each other. The rotor is made of laminated disks to reduce eddy currents, which can affect motor efficiency.
Fleming’s left-hand rule helps determine the direction of force in the motor. By using your left hand, you can visualize the direction of conventional current, the magnetic field, and the resulting force.
In operation, the rotor coils and commutator rotate while the magnets remain stationary. The flow of conventional current through the coils creates upward and downward forces, resulting in rotation. Reversing the power supply will reverse the current and the direction of rotation.
Thank you for watching. To continue your learning, check out one of the videos on screen now, and I’ll catch you in the next lesson. Don’t forget to follow us on social media and visit The Engineering Mindset.
—
This version maintains the technical content while removing informal language and filler phrases for a more professional presentation.
Electricity – A form of energy resulting from the existence of charged particles such as electrons or protons, typically manifesting as either static electricity or current electricity. – The principles of electricity are fundamental to understanding how circuits function in electronic devices.
Magnetism – A physical phenomenon produced by the motion of electric charge, resulting in attractive and repulsive forces between objects. – Magnetism is a key factor in the operation of electric motors and generators.
Rotation – The action of rotating around an axis or center. – The rotation of the turbine blades is essential for converting wind energy into mechanical energy.
Current – A flow of electric charge carried by moving electrons in a wire. – The current in the circuit was measured to ensure it did not exceed the safety limits of the components.
Coils – Loops of wire that create a magnetic field when an electric current passes through them. – The coils in the transformer are designed to increase or decrease voltage levels efficiently.
Motor – A machine, especially one powered by electricity or internal combustion, that supplies motive power for a vehicle or for some other device with moving parts. – The electric motor in the vehicle provides a quiet and efficient means of propulsion.
Commutator – A rotary switch in certain types of electric motors and electrical generators that periodically reverses the current direction between the rotor and the external circuit. – The commutator is crucial for ensuring the motor’s rotation is continuous and smooth.
Rotor – The rotating part of an electrical or mechanical device, such as in an electric motor, generator, or alternator. – The rotor’s speed is directly proportional to the frequency of the alternating current supplied to the motor.
Energy – The capacity to do work, such as causing motion or the interaction of molecules. – Understanding energy conversion processes is vital for designing efficient power systems.
Efficiency – The ratio of the useful output of a system to the input, expressed as a percentage. – Improving the efficiency of solar panels can significantly enhance their viability as a renewable energy source.
