In 1977, NASA launched the Voyager 1 space probe to explore the outer regions of our solar system. Along with its twin, Voyager 2, these probes have become the longest-operating spacecraft in history. Today, Voyager 1 is an astonishing 19 billion kilometers away from Earth, traveling at a speed of 61,000 km/h. Despite being the farthest human-made object from our planet, we can still communicate with it. But how much longer can we keep in touch?

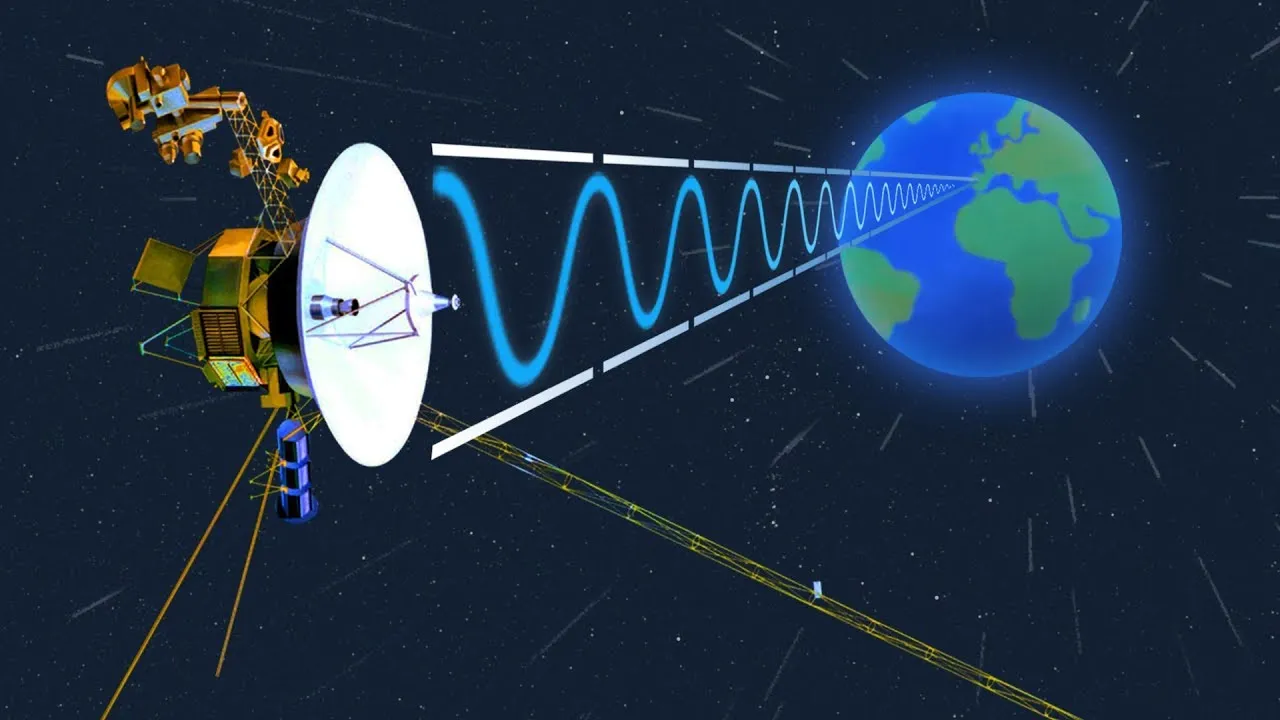

To understand how we communicate with Voyager 1, we need to know how it sends and receives data from such a great distance. A powerful 20-kilowatt signal is sent from Earth to Voyager 1 using radio waves. This signal takes nearly 20 hours to reach the probe. For comparison, it takes about 15 minutes for signals to travel between Mars rovers and Earth. Voyager 1 sends data back using a much weaker 20-watt signal. As the signal travels through space, it becomes weaker, and by the time it reaches Earth, it’s barely detectable.
To pick up these faint signals, NASA uses the Deep Space Network (DSN), which consists of three large antenna complexes located around the globe. Each complex has a massive 70-meter antenna and several 34-meter antennas that work together to detect signals thousands of times weaker than a typical FM radio signal. The DSN dedicates several hours each day to listening for Voyager 1’s signals, and so far, it has been successful.
Thanks to significant advancements in technology over the past 50 years, there isn’t a strict limit on how far we can communicate with space objects. With our current technology, we could potentially communicate with objects many light-years away, as long as our receivers are sensitive enough to pick up the weak signals. However, as Voyager 1 continues its journey, the time it takes to send and receive signals increases, and the data rates slow down, making communication more challenging.
Voyager 1 will keep traveling indefinitely, but our ability to communicate with it is limited. The spacecraft is powered by nuclear energy, which weakens over time. In 1990, to conserve power, engineers turned off Voyager’s camera after it captured the famous “Pale Blue Dot” image, showing Earth as a tiny blue speck in the vastness of space. Currently, only 4 out of its 11 scientific instruments are still active, collecting data on magnetic fields, solar winds, and cosmic rays beyond our solar system.
In about 8 years, Voyager 1 will run out of power and won’t be able to operate its instruments. Scientists will continue to gather data from the probe until it sends its final message and drifts silently into space, never to be heard from again. Although the end is near for Voyager 1, we can celebrate its incredible journey and the valuable knowledge it has provided.
Thank you to the Primal Space Patrons who support the research and creation of educational content. If you’re interested in contributing, visit Patreon.com/PrimalSpace. Stay tuned for more exciting space discoveries!
Research the key milestones of Voyager 1’s journey since its launch in 1977. Create a timeline that highlights these events, including its launch, major discoveries, and current status. Use images and brief descriptions to make your timeline visually appealing and informative.
Imagine you are tasked with designing a new communication system for deep space probes like Voyager 1. Consider the challenges of distance and weak signals. Create a diagram or model of your communication relay system and explain how it would improve data transmission between Earth and distant spacecraft.
Using the information that signals take nearly 20 hours to reach Voyager 1, calculate how long it would take for a signal to travel to other planets in our solar system. Compare these times and discuss how distance affects communication with space probes.
Research NASA’s Deep Space Network and its role in communicating with Voyager 1. Create a presentation that explains how the network operates, the technology it uses, and its importance in space exploration. Include images and diagrams to enhance your presentation.
Imagine you are Voyager 1, traveling through space. Write a diary entry describing your journey, the challenges you face, and your thoughts on the future. Use creative writing to bring the spacecraft’s perspective to life, incorporating facts from the article.
In 1977, the Voyager 1 space probe was launched to study the outer solar system. The two Voyager space probes have become the longest operating spacecraft in spaceflight history. Forty-one years later, Voyager 1 is now 19 billion kilometers from Earth and traveling at 61,000 km/h. Despite Voyager 1 being the furthest man-made object from Earth, we are still able to communicate with the space probe on a regular basis. But how far can it go before we can no longer communicate with it?
To answer this, we need to know how Voyager 1 receives and transmits data from 21 billion kilometers away. A 20-kilowatt signal is transmitted from Earth to Voyager 1 using radio waves. It takes almost 20 hours for the signal to reach the space probe, where its sensitive antenna picks up the signal. For comparison, it takes the rovers on Mars an average of just 15 minutes to send messages back to Earth. Voyager starts sending data back to Earth using a 20-watt signal. As it travels through space, the signal strength weakens, and by the time it reaches Earth, the signal is barely detectable.
In order to communicate with objects that are this far away, it doesn’t really matter how strong the signal is, as long as you have a receiver that is sensitive enough to pick it up. NASA uses the Deep Space Network, which consists of three antenna complexes equally spaced around the Earth. Each complex has a huge 70-meter antenna along with multiple 34-meter antennas that can be combined to pick up signals that are thousands of times weaker than your standard FM radio signal. The Deep Space Network spends several hours each day listening for faint signals from Voyager 1, and so far, it continues to communicate with us.
Since our methods for detecting signals have improved drastically over the past 50 years, there isn’t really a limit on how far we can communicate with objects in space. With our current technology, we could reliably communicate with objects that are many light-years away from us, as long as our receivers are sensitive and accurate enough to pick up the extremely weak signals. As Voyager travels further and further away from Earth, it takes longer to send and receive signals. The signal strength also gets weaker, and data rates become slower, making it harder to communicate with the spacecraft.
Voyager 1 will continue on its journey indefinitely, and although there is technically no limit to how far we can communicate, our communication with Voyager 1 only has a few years left. Since Voyager 1 is nuclear-powered, its electrical power weakens each day. In 1990, in order to save power, engineers turned off the spacecraft’s camera after Voyager took the famous “Pale Blue Dot” image, which showed Earth as a tiny blue pixel against the darkness of space. Today, only 4 out of the 11 scientific instruments on Voyager 1 are still active. These instruments are being used to collect data on magnetic fields, solar winds, and cosmic rays outside of our solar system.
In around 8 years, Voyager 1 will completely run out of power and will no longer be able to keep its instruments going. Scientists will continue to communicate with the space probe and receive the important information it gathers until it eventually sends its last bit of data and disappears silently into space, never to be heard from again.
So although the end is near for the Voyager space probes, we can appreciate the incredible journey they have been on and the valuable science they have taught us. Thank you to the Primal Space Patrons who help to write and research each video. If you’d like to contribute to Primal Space, please visit Patreon.com/PrimalSpace, where we will be doing a giveaway of a Saturn V Lego set once we reach 50 patrons. So make sure you’re subscribed, so you can join the discussion as we continue to learn more about all things space. Thank you very much for watching, and I’ll see you in the next video.
Voyager – A spacecraft designed to travel beyond the solar system and send information back to Earth. – The Voyager spacecraft have provided us with valuable data about the outer planets and are now traveling through interstellar space.
Space – The vast, seemingly infinite expanse that exists beyond Earth’s atmosphere where stars, planets, and other celestial bodies are located. – Astronomers use telescopes to explore the mysteries of space and learn more about the universe.
Signals – Waves or pulses of energy used to transmit information across distances, often used in communication with spacecraft. – The signals from the Mars rover take several minutes to reach Earth due to the vast distance between the two planets.
Technology – The application of scientific knowledge for practical purposes, especially in industry, including the development of tools and machines. – Advances in technology have allowed scientists to build more powerful telescopes to observe distant galaxies.
Communication – The process of transmitting information from one place to another, often using signals or waves. – Communication with spacecraft is crucial for receiving data and sending commands across the vast distances of space.
Distance – The amount of space between two points, often measured in units such as kilometers or light-years in astronomy. – The distance between Earth and the nearest star, Proxima Centauri, is about 4.24 light-years.
Solar – Relating to or derived from the sun, often used to describe energy or phenomena associated with the sun. – Solar panels on satellites convert sunlight into electricity to power their instruments.
Energy – The capacity to do work or cause change, which can exist in various forms such as kinetic, potential, thermal, or solar energy. – The sun provides energy to our planet, driving weather patterns and supporting life through photosynthesis.
Data – Information collected for analysis or used to make decisions, often gathered through observations or experiments. – Scientists analyze data from telescopes to understand the composition and behavior of distant stars.
Planets – Celestial bodies that orbit a star, are spherical in shape, and have cleared their orbital path of other debris. – The eight planets in our solar system include Mercury, Venus, Earth, Mars, Jupiter, Saturn, Uranus, and Neptune.
