Welcome! In this article, we will delve into the workings of the thermostatic expansion valve, commonly known as the TXV, which plays a crucial role in refrigeration systems. We’ll explore its applications, components, functionality, and the implications of its failure.
The thermostatic expansion valve, often abbreviated as TXV, is a key component in many refrigeration systems, ranging from small split units to large industrial chillers. While household refrigerators typically use a fixed orifice capillary instead of a TXV, the valve is generally located just before the evaporator in systems where it is used.
The TXV consists of several main components: the valve body, diaphragm, needle or pin and seat, spring, and the sensing bulb with a capillary line. These parts work together to regulate the flow of refrigerant into the evaporator.
The valve body houses the internal components and features an orifice that controls the refrigerant flow. The diaphragm, made of a flexible material, applies pressure to assist in this regulation. The needle or pin moves to restrict or allow refrigerant flow, counteracted by the spring’s force. The sensing bulb and capillary line are crucial for monitoring and adjusting the valve’s operation based on temperature changes.

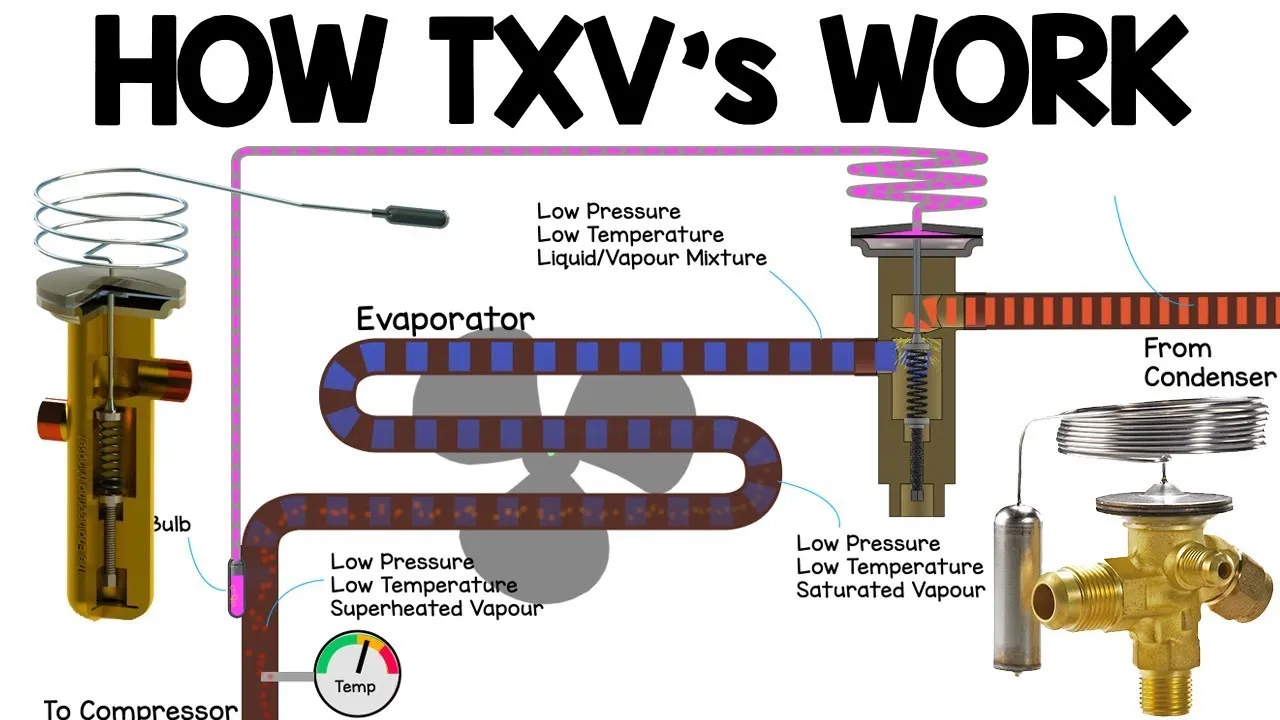

The TXV is positioned before the evaporator, holding back high-pressure liquid refrigerant from the condenser. It reduces the pressure, allowing the refrigerant to boil at lower temperatures, which is essential for heat absorption. As the refrigerant passes through the valve’s orifice, it experiences a pressure drop, causing some of it to vaporize. This mixture then enters the evaporator, where it absorbs heat from the surrounding air or water.
As the refrigerant flows through the evaporator, it undergoes a phase change from liquid to vapor, absorbing thermal energy without a significant temperature change due to latent heat. The sensing bulb monitors the temperature at the evaporator exit to control the refrigerant flow. If the cooling load increases, more refrigerant evaporates, raising the superheat and temperature, prompting the valve to open further.
The TXV automatically adjusts to maintain the correct refrigerant flow, balancing the forces on the diaphragm and spring. This regulation ensures the superheat temperature is kept at optimal levels. However, if the valve fails or incorrect superheat settings are used, liquid refrigerant might pass to the compressor, potentially causing damage as compressors are not designed to handle liquids.
The thermostatic expansion valve is a vital component in HVAC systems, providing automatic and precise control of refrigerant flow. Understanding its operation and components can help in maintaining efficient and reliable refrigeration systems. For more advanced control, electronic versions of the TXV are available, offering even greater precision.
For those in the air conditioning and refrigeration field, high-quality TXVs are essential. Companies like Danfoss offer reliable and adaptable solutions for various refrigerants, ensuring exceptional performance and durability.
Thank you for exploring the workings of the TXV with us. For further information, resources, and products, consider visiting Danfoss’s website or TheEngineeringMindset.com.
Create a detailed diagram of a thermostatic expansion valve (TXV) using a digital tool like Lucidchart or Microsoft Visio. Label each component, such as the valve body, diaphragm, needle, spring, and sensing bulb. Share your diagram with classmates and discuss how each part contributes to the overall functionality of the TXV.
Analyze a real-world case study where a TXV failure led to system inefficiencies or damage. Identify the symptoms, causes, and solutions implemented. Present your findings in a group presentation, highlighting how understanding TXV operation can prevent such issues.
Use HVAC simulation software to model a refrigeration system with a TXV. Experiment with different superheat settings and observe the effects on system performance. Write a report on how these settings impact the efficiency and reliability of the system.
Participate in a hands-on workshop where you disassemble a TXV and identify each component. Discuss the role of each part and how they interact to regulate refrigerant flow. This practical experience will reinforce your understanding of the TXV’s construction and operation.
Research the differences between traditional TXVs and electronic expansion valves (EEVs). Prepare for a class debate on which technology offers better performance and why. Consider factors like precision, cost, and application scenarios in your arguments.
Sure! Here’s a sanitized version of the YouTube transcript:
—
Hello everyone, Paul here from TheEngineeringMindset.com. In this video, we will explore how a thermostatic expansion valve works. We’ll cover which refrigeration systems use these valves, where to locate them in the system, what they look like, their internal components, how they function, and what happens if they fail.
I want to extend a special thank you to Danfoss for sponsoring this video. Danfoss offers numerous solutions for those of us working in the air conditioning and refrigeration field. If you’re watching this video, you likely need high-quality thermostatic expansion valves regularly, and I encourage you to check out what Danfoss has to offer. Their products are universal and adaptable, providing exceptional quality and reliability across a wide range of refrigerants. You can find more information about Danfoss thermostatic expansion valves in the video description below or by visiting TXV or Danfoss.com.
The thermostatic expansion valve is often referred to as a thermal expansion valve, but both names can be a bit lengthy. Engineers tend to prefer shortcuts, so they often use the acronym TXV or sometimes TEV, depending on the region. I will refer to it as TXV throughout this video.
So, where do we find the TXV? These valves are used in many refrigeration systems, from simple split units to large chillers. Small refrigeration units, like household refrigerators, typically do not use a valve; instead, they use a fixed orifice capillary, which we will discuss in another video. Regardless of the type of expansion device used, they are generally located just before the evaporator.
There are various designs for these valves, and I have some examples on the screen now. Let’s look at a real-world example. This setup is for an air handling unit (AHU) that has two expansion valves due to its large cooling coil. The valve is positioned at the evaporator entrance and regulates the refrigerant flow into it. The capillary tube runs from the power head on the valve to the sensing bulb located at the evaporator exit, measuring the temperature of the superheat.
Now, let’s examine the main components inside the thermostatic expansion valve and how it operates. When we disassemble the thermostatic expansion valve, we see the following main components: the valve body, which contains the components and has an orifice to control the refrigerant flow; the diaphragm, made of a strong, flexible material that applies pressure; the needle or pin and seat, which moves to restrict the refrigerant flow; the spring, which counteracts the needle’s force; and the sensing bulb and capillary line, which control the valve’s opening and closing.
As we saw in the real-world example, the valve sits just before the evaporator, holding back high-pressure liquid refrigerant from the condenser and controlling how much refrigerant can enter the evaporator. The valve reduces the pressure, allowing the refrigerant to boil at lower temperatures. For instance, water typically boils at around 100 degrees Celsius (212 degrees Fahrenheit) at sea level. However, at higher altitudes, such as the top of Mount Everest, water boils at only 70 degrees Celsius (158 degrees Fahrenheit) due to the reduced atmospheric pressure.
Boiling is crucial for the refrigeration system, as it absorbs heat from the surrounding air or water and carries it away to the compressor. The high-pressure liquid refrigerant is forced through a small orifice, causing a pressure drop. As it passes through, some of it vaporizes while the rest remains liquid. This mixture of liquid and vapor refrigerant is then introduced into the evaporator, where it absorbs heat from the surrounding air or water.
In this example, a fan blows air across the evaporator. As the refrigerant flows through the evaporator and absorbs thermal energy, it undergoes a complete phase change and becomes a saturated vapor by the end of the evaporator coil. During this phase change, there is little to no temperature change due to latent heat, but the refrigerant increases in entropy and enthalpy. Once the phase change occurs, the refrigerant continues to absorb thermal energy, increasing its temperature.
The sensing bulb of the expansion valve monitors this temperature to control the refrigerant flow. For example, if the cooling load increases, more refrigerant will evaporate, raising the superheat and the refrigerant temperature at the evaporator exit. To decrease the superheat, more refrigerant needs to flow into the evaporator, requiring the pin to open further.
Inside the sensing bulb is a small amount of refrigerant, which is confined to the bulb, capillary tube, and power head. As the temperature increases, the refrigerant in the sensing bulb boils and evaporates, raising the pressure. This pressure travels up the capillary tube to the top of the expansion valve, pushing down on the diaphragm, which in turn compresses the spring and allows more refrigerant to flow through the orifice.
The valve adjusts to maintain the correct position, ensuring that the force on the diaphragm is equal to or greater than the spring force pushing in the opposite direction. This regulation allows the correct amount of refrigerant to flow, decreasing the superheat temperature at the outlet, which the sensing bulb detects and equalizes.
If the cooling load decreases, the superheat temperature will reduce, prompting the sensing bulb to decrease the refrigerant evaporation in its chamber. The refrigerant in the capillary then flows back towards the bulb, causing the main valve to close. As this occurs, the superheat temperature will start to rise again until the valve equalizes and the correct amount of refrigerant flows to match the superheat settings.
All of this happens automatically with this type of valve, which is why it is so popular. There are also electronic versions of this valve that provide even more precise control, which we will discuss in a later video.
So, what happens if the valve fails or if incorrect superheat settings are used? If the valve does not respond to the superheat, it could allow liquid refrigerant to pass straight through to the compressor. Compressors are not designed to handle liquid refrigerant, which can cause significant damage.
Thank you for watching this video. I also want to thank our friends at Danfoss for sponsoring this video. Please check out their high-quality thermostatic expansion valves at cooling.danfoss.com. More information can also be found in the video description below. If you found this video helpful, please like, subscribe, and share. If you have any questions, feel free to leave them in the comments section. Don’t forget to check us out on Facebook, Instagram, and Twitter, and visit our website: TheEngineeringMindset.com.
—
This version maintains the informative content while removing any informal language and potential issues.
Thermostatic – Relating to or denoting a device that automatically regulates temperature, or that activates a device when the temperature reaches a certain point. – The thermostatic control in the heating system ensures that the room maintains a constant temperature.
Expansion – The increase in volume or size of a substance or system, often due to heat. – The expansion of the metal rod was measured to determine the coefficient of thermal expansion.
Valve – A device that regulates, directs, or controls the flow of a fluid by opening, closing, or partially obstructing various passageways. – The engineer adjusted the valve to control the flow rate of the coolant in the system.
Refrigerant – A substance used in a heat cycle, typically including, for example, refrigeration, to transfer heat from one area, and remove it to another. – The efficiency of the air conditioning system depends significantly on the properties of the refrigerant used.
Evaporator – A component in a refrigeration system where the refrigerant absorbs heat and evaporates, cooling the surrounding environment. – The evaporator coil in the refrigerator is responsible for absorbing heat from the interior, keeping the food cold.
Pressure – The force exerted per unit area on the surface of an object, often measured in Pascals or atmospheres in engineering contexts. – The pressure in the hydraulic system must be monitored to ensure safe operation of the machinery.
Temperature – A measure of the thermal energy within a sample of matter, indicating how hot or cold it is, typically measured in degrees Celsius or Kelvin. – The temperature of the gas was increased to study its effect on the reaction rate.
Energy – The capacity to do work or produce change, often measured in joules or kilowatt-hours in physics and engineering. – The energy required to lift the load was calculated using the principles of mechanical work.
Regulation – The control or maintenance of a process or system to ensure its proper functioning, often through feedback mechanisms. – The regulation of voltage in the circuit is crucial to prevent damage to the electronic components.
Systems – Complex networks of components or processes that interact to perform a specific function or set of functions. – Understanding the dynamics of mechanical systems is essential for designing efficient machines.
