Welcome to an insightful exploration of how refrigerants operate within HVAC systems. As an aspiring HVAC engineer, grasping the mechanics of refrigerants, their phase transitions, and their role in thermal energy transfer is crucial.
Before diving into the technical details, let’s acknowledge Danfoss, a key player in the cooling industry. They provide valuable resources and tools to support the transition to environmentally friendly refrigerants. Their offerings include a refrigerant retrofit guide, a low GWP tool, and the Coolselector®2 app, all accessible at refrigerants.danfoss.com.

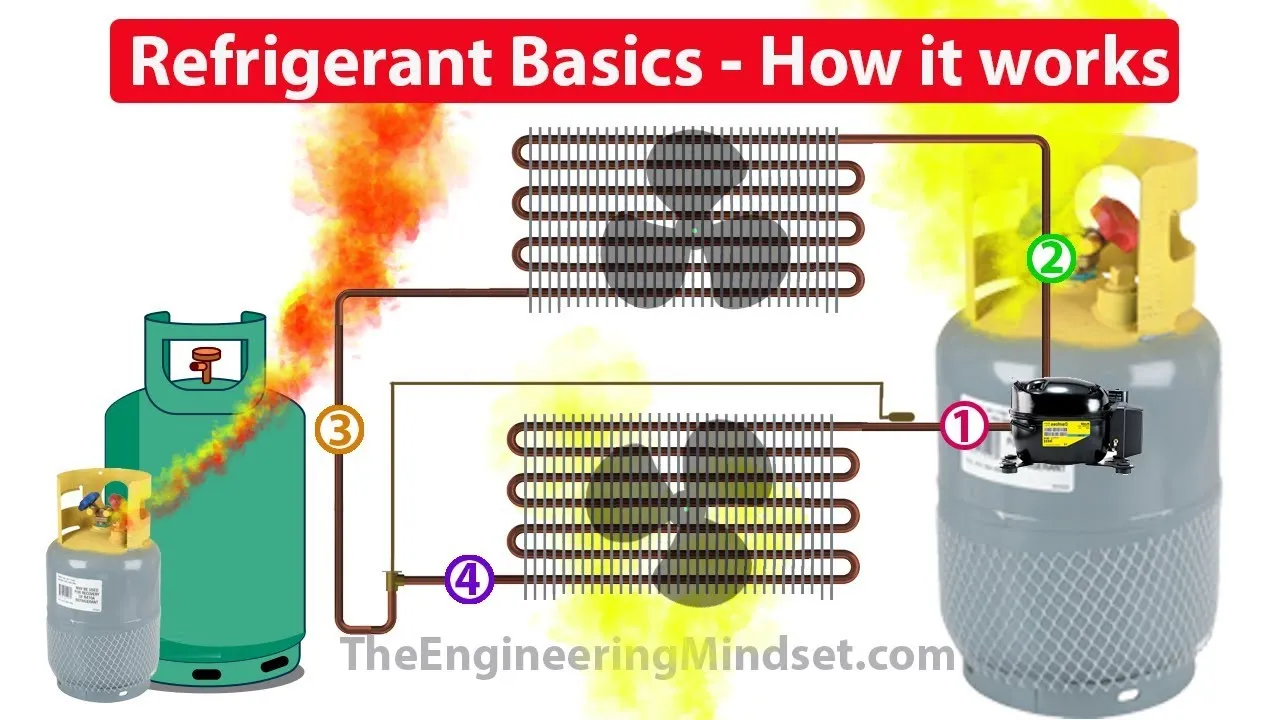

Regardless of the system type—be it a household refrigerator, a split unit, or a large industrial chiller—the fundamental operation remains consistent. Refrigerants circulate through four main components: the evaporator, compressor, condenser, and expansion device.
Refrigerants are specialized fluids capable of transitioning between liquid and vapor states repeatedly. While water can serve as a refrigerant in absorption chillers, specially designed refrigerants like R22, R134A, and R410A are more efficient for typical refrigeration systems.
These refrigerants have notably low boiling points compared to water, enabling them to evaporate and absorb heat quickly. For instance, R134A boils at -26.3°C (-15.34°F), allowing it to utilize room temperature to evaporate and extract heat efficiently.
The cycle begins with the compressor, which propels the refrigerant through the system. Using a basic piston-type compressor for illustration, the refrigerant enters as a saturated vapor at low temperature and pressure. The compressor compresses the refrigerant, increasing its temperature and pressure by converting kinetic energy into heat.
Next, the refrigerant moves to the condenser, where it releases unwanted heat into the atmosphere. Entering as a superheated vapor, the refrigerant passes through condenser tubes, where fans blow air across to cool it. This process condenses the refrigerant into a liquid.
The refrigerant then reaches the expansion device, typically a thermal expansion valve, which regulates its flow into the evaporator. As it passes through, the refrigerant expands, reducing its pressure and temperature.
In the evaporator, warm air is blown across the coils, allowing the refrigerant to absorb energy and evaporate into vapor. The refrigerant exits the evaporator as a saturated vapor at low pressure and temperature, ready to repeat the cycle.
During the phase change from liquid to vapor, the refrigerant absorbs thermal energy to break molecular bonds, which may result in minimal temperature change. The temperature will only alter once the phase change is complete.
Thank you for engaging with this educational content. We hope it enhances your understanding of refrigerants in HVAC systems. Don’t forget to explore Danfoss’s free resources at refrigerants.danfoss.com for further learning.
Engage with an online simulation tool that allows you to manipulate different components of the refrigeration cycle. Observe how changes in the compressor, condenser, expansion device, and evaporator affect the system’s efficiency. This hands-on experience will deepen your understanding of each component’s role in the cycle.
Analyze a real-world case study of an HVAC system retrofit using environmentally friendly refrigerants. Discuss the challenges and solutions implemented during the transition. This activity will help you understand the practical applications and considerations of using low GWP refrigerants.
Participate in a group discussion focusing on the properties of different refrigerants, such as boiling points and environmental impact. Share insights on how these properties influence the choice of refrigerants in various HVAC applications. This collaborative activity will enhance your critical thinking and communication skills.
Conduct a simple experiment to observe the phase change of a refrigerant-like substance. Use a safe, low-boiling-point liquid to demonstrate evaporation and condensation. Document your observations and relate them to the phase changes discussed in the article. This experiment will provide a tangible understanding of thermal energy transfer.
Research the tools provided by Danfoss, such as the refrigerant retrofit guide and the Coolselector®2 app. Prepare a presentation on how these tools can aid HVAC professionals in selecting and transitioning to new refrigerants. This activity will familiarize you with industry resources and enhance your presentation skills.
Here’s a sanitized version of the YouTube transcript:
—
Hello everyone, Paul here from theengineeringmindset.com. In this video, we will learn how refrigerants work in HVAC systems. To become an HVAC engineer, it is essential to understand how refrigerants function, how they change phases, and how they move thermal energy throughout the system.
I would like to take a moment to thank Danfoss, our sponsor for today’s episode. Danfoss is a valuable source for information and resources that can assist you in the cooling industry’s transition to natural and climate-friendly refrigerants. They have a deep understanding of the new regulations and their effects, and they are ready to share their knowledge and solutions with you. They have also created helpful tools like their refrigerant retrofit guide, the low GWP tool, and the Coolselector®2 app, which is available for free on their website. You can visit them at refrigerants.danfoss.com.
Now, jumping into the video, it doesn’t matter what type of system you look at, from the refrigerator in your home to simple split units and large industrial chillers; they all work similarly. This is because they pass refrigerant between the main components: the evaporator, the compressor, the condenser, and the expansion device.
When we refer to refrigerant, we mean a fluid that can easily transition from a liquid to a vapor and back again, repeatedly, without failure. While water can be used as a refrigerant and is utilized in absorption chillers, we typically use specially designed refrigerants that perform much better for common refrigeration units.
On the screen, you will see some of the more common refrigerants currently in use: R22, R134A, and R410A. If you are unfamiliar with what these R numbers mean, don’t worry; we will explore the different types of refrigerants in the next video, along with their pros and cons, especially regarding their potential environmental impact.
These refrigerants have extremely low boiling points compared to water, requiring very little heat to boil and evaporate into vapor, allowing them to extract heat more rapidly. For example, at atmospheric pressure, the boiling point of water is 100°C (212°F), while R134A has a boiling point of just -26.3°C (-15.34°F). This means we can use room temperature to boil these refrigerants and remove heat from the room.
Let’s see how refrigerants move around the system. We will start with the compressor, which is the driving force of the refrigerant, pushing it throughout the system. There are various types of compressors, but in this video, we will focus on the basic piston type for clarity.
The refrigerant enters the compressor as a saturated vapor at low temperature and low pressure. The compressor pulls the refrigerant in and rapidly compresses it, forcing the molecules together into a smaller space. This increases the collision rate of the molecules, converting their kinetic energy into heat. The energy input from the compressor also converts into internal energy within the refrigerant, resulting in an increase in internal energy, enthalpy, temperature, and pressure.
Next, the refrigerant moves from the compressor to the condenser, where unwanted heat is rejected into the atmosphere. This includes heat from the building and the compressor. The refrigerant enters the condenser at a higher temperature than the surrounding air to facilitate heat transfer. The greater the temperature difference, the easier the heat transfer will be.
The refrigerant enters as a superheated vapor at high pressure and temperature and passes through the condenser tubes. Fans blow air across the condenser to remove heat, similar to blowing on a hot spoon of soup to cool it down. As the air blows across the tubes, it extracts thermal energy from the refrigerant, causing it to condense into a liquid by the time it leaves the condenser.
Next, the refrigerant moves to the expansion device, in this case, a thermal expansion valve. The expansion valve controls the flow of refrigerant into the evaporator. As the refrigerant passes through the expansion valve, it expands due to the lower pressure in the evaporator, reducing its pressure and temperature.
The refrigerant then enters the evaporator, where a fan blows warm air across the coils. The air temperature must be higher than that of the cool refrigerant, allowing it to absorb energy and boil the refrigerant into vapor. The refrigerant leaves the evaporator as a saturated vapor at low pressure and temperature.
The temperature change during this process may be slight, which can be confusing. However, this is because the refrigerant is undergoing a phase change from liquid to vapor, using thermal energy to break molecular bonds. The temperature will only change once the fluid is no longer undergoing a phase change.
Thank you for watching this video! I hope you found it helpful. Before we go, I would like to thank Danfoss once again for sponsoring this episode and remind you to check out their free refrigerant resources available at refrigerants.danfoss.com.
—
This version maintains the essential information while removing any informal language or unnecessary filler.
Refrigerants – Substances used in a refrigeration cycle to absorb and release heat, facilitating the cooling process in HVAC systems. – The choice of refrigerants significantly impacts the efficiency and environmental footprint of HVAC systems.
HVAC – Heating, Ventilation, and Air Conditioning systems designed to regulate indoor environmental comfort. – Engineers must consider energy efficiency and sustainability when designing HVAC systems for modern buildings.
Thermal – Relating to heat or temperature, often used in the context of energy transfer and insulation. – Thermal conductivity is a crucial factor in selecting materials for heat exchangers.
Energy – The capacity to do work, which can exist in various forms such as kinetic, potential, thermal, and electrical. – Engineers strive to optimize energy consumption in industrial processes to reduce costs and environmental impact.
Phase – A distinct state of matter, such as solid, liquid, or gas, characterized by uniform physical properties. – Understanding phase transitions is essential for designing efficient thermal management systems.
Compression – The process of reducing the volume of a gas, thereby increasing its pressure, commonly used in refrigeration cycles. – The efficiency of a refrigeration cycle can be improved by optimizing the compression stage.
Condensation – The process by which a gas turns into a liquid when it is cooled below its dew point. – Effective condensation is vital in power plants to maximize the efficiency of steam turbines.
Expansion – The increase in volume of a substance, often a gas, as it absorbs heat or decreases in pressure. – The expansion valve in a refrigeration system controls the flow of refrigerant into the evaporator.
Evaporation – The process by which a liquid turns into a vapor, often used in cooling processes. – Evaporation is a key principle in the operation of cooling towers used in industrial facilities.
Properties – Characteristics or attributes of a material or system that determine its behavior under specific conditions. – Material properties such as thermal conductivity and tensile strength are critical in engineering design.
