Imagine being part of an exciting experiment that explores how we can generate electricity using just water! I recently had the chance to do just that, inspired by the Hunger Games. Let’s dive into this fascinating experiment and see what we discovered!

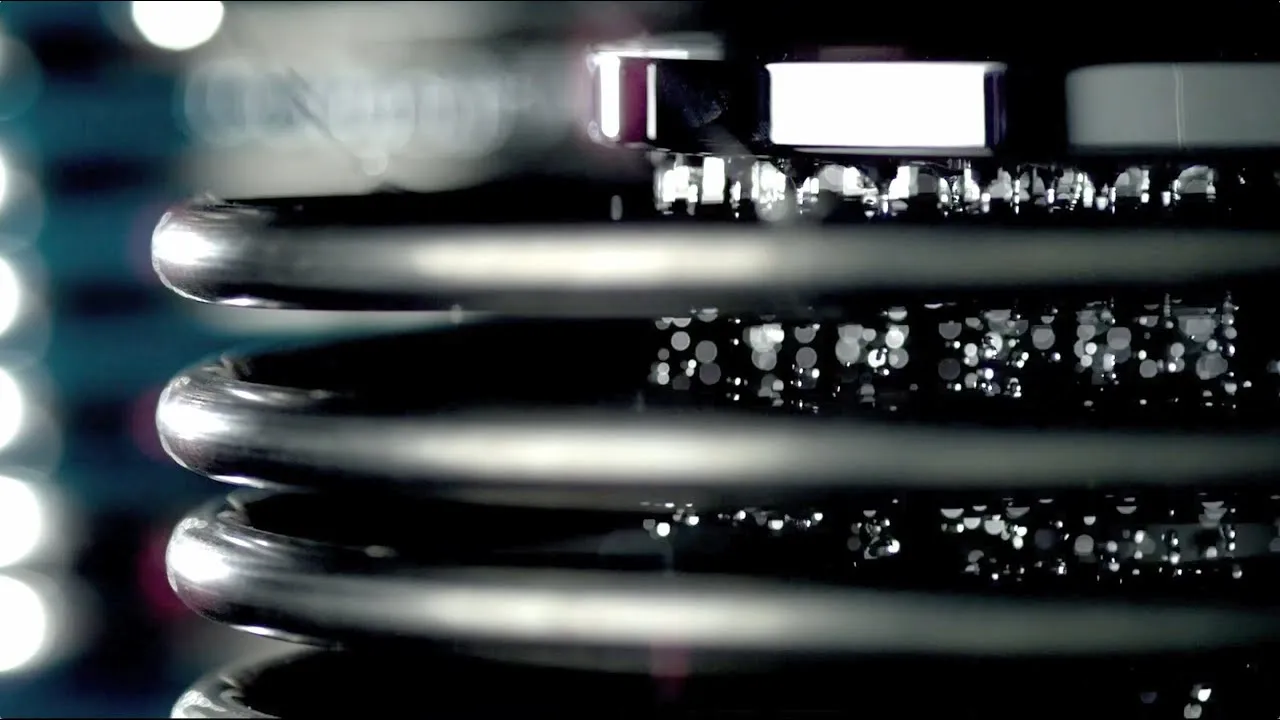

In our experiment, we used two rain shower heads to create streams of water. These streams flowed through coils and then passed through a wire mesh. Each stream was separate and connected to its own bowl. When we turned on the water, something amazing happened: we generated a small electric spark! This spark could reach between 5,000 to 10,000 volts. Although this sounds like a lot, it’s not dangerous because the current (which is what can harm you) is very low.
You might be wondering how we managed to create such high voltage with just water and metal. The secret lies in the nature of water. Normally, water is neutral, meaning it has an equal number of positive and negative ions. But as the water falls from the shower heads, a tiny imbalance can occur. This causes one stream to become more negatively charged and the other more positively charged.
In our setup, the mesh on the left was connected to a ring on the right. If the mesh became negatively charged, the ring would also become negatively charged, attracting the positively charged water. This interaction made the entire stream positively charged, which then charged the mesh below it. This created a clear separation of charge: one side was positively charged, and the other was negatively charged.
As you watch the streams, you’ll notice them being pulled toward the top coils. When enough charge builds up, it jumps from the negative side to the positive side, neutralizing everything and starting the process all over again. This is a fantastic demonstration of basic physics principles.
This concept was first discovered over a hundred years ago by Lord Kelvin, and the setup is often called “Kelvin’s Water Dropper” or “Lord Kelvin’s Rainstorm.” It’s a great example of how simple ideas can lead to impressive results.
You might be curious about how much energy this system actually produces. To give you an idea, if you tried to charge a smartphone using this setup, it would take about six and a half years to fully charge it! So, while the experiment is super interesting, the energy it generates is quite small.
So, where does the electrical energy in this system come from? With only falling water and metal pipes involved, it’s a fascinating question. Feel free to share your thoughts or even make a video response to discuss this intriguing phenomenon further!
Gather materials like plastic bottles, metal cans, and wire mesh to create your own Kelvin Water Dropper. Follow the steps to set up the experiment and observe how water can generate electricity. Document your observations and explain the process of charge separation in your own words.
Use a multimeter to measure the voltage and current in different parts of the Kelvin Water Dropper setup. Record your findings and create a graph to show the relationship between voltage and current. Discuss why the voltage is high but the current is low, and what this means for safety.
Explore an online simulation of the Kelvin Water Dropper. Adjust variables like water flow rate and distance between the mesh and ring. Predict how these changes will affect the voltage generated, and then test your predictions using the simulation. Share your results with the class.
Research the history of Lord Kelvin and his contributions to physics. Create a presentation that explains how the Kelvin Water Dropper was discovered and its significance in the study of electricity. Include interesting facts about Lord Kelvin’s life and other inventions.
Calculate how much energy is needed to charge a smartphone and compare it to the energy output of your Kelvin Water Dropper. Discuss why it would take about six and a half years to charge a phone using this method. Brainstorm ways to improve the efficiency of the system.
Water – A transparent, tasteless, odorless, and nearly colorless chemical substance, which is the main constituent of Earth’s streams, lakes, and oceans, and the fluids of most living organisms. – Water is essential for life, and it also plays a crucial role in many scientific experiments, such as studying the properties of solutions.
Electricity – A form of energy resulting from the existence of charged particles such as electrons or protons, either statically as an accumulation of charge or dynamically as a current. – When you turn on a light switch, electricity flows through the wires to illuminate the bulb.
Voltage – The difference in electric potential between two points, which causes electric current to flow in a circuit. – The voltage across a battery is what pushes the electric current through the circuit to power devices.
Charged – Having an electric charge, either positive or negative, due to the loss or gain of electrons. – A charged balloon can stick to a wall because of the static electricity it carries.
Experiment – A scientific procedure undertaken to test a hypothesis by collecting data under controlled conditions. – In our science class, we conducted an experiment to observe how different materials affect the speed of a rolling ball.
Energy – The capacity to do work or produce change, which can exist in various forms such as kinetic, potential, thermal, electrical, chemical, and nuclear. – The energy from the sun is harnessed by solar panels to generate electricity.
Physics – The branch of science concerned with the nature and properties of matter and energy, encompassing concepts such as force, motion, and the structure of atoms. – In physics class, we learned about Newton’s laws of motion and how they apply to everyday activities.
Neutral – Having no net electric charge; not positive or negative. – In an atom, the number of protons and electrons are equal, making it electrically neutral.
Current – The flow of electric charge carried by moving electrons in a conductor, typically measured in amperes. – The electric current flowing through the circuit was measured using an ammeter.
Ions – Atoms or molecules that have gained or lost one or more electrons, resulting in a net electric charge. – Salt dissolves in water to form ions, which conduct electricity in the solution.
