Hello everyone, Paul here from TheEngineeringMindset.com. In this article, we will explore how Star Delta Starters function in three-phase induction motors. It’s important to note that working with electricity can be hazardous, so ensure you are qualified before performing any electrical tasks.

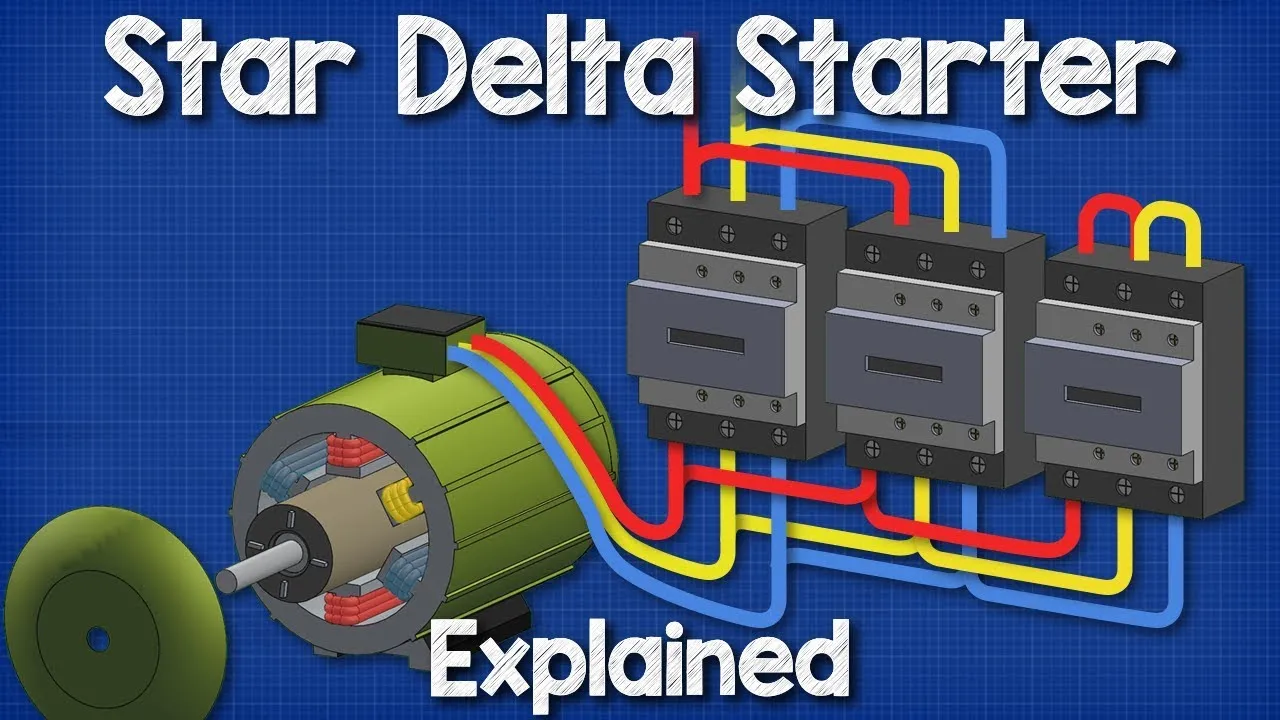

The Star Delta Starter is a crucial component for operating three-phase induction motors, commonly used in commercial and industrial settings. By the end of this article, you will have a clear understanding of how each part of the starter works and how the entire system operates cohesively. For clarity, we’ll use the traditional red-yellow-blue color coding for the phases, but we’ll also discuss the color schemes used in the US, EU, UK, and Australia.
Three-phase motors are prevalent in various applications due to their efficiency and reliability. Inside these motors, there are three separate coils that create a rotating magnetic field. When an AC current passes through each coil, it generates a magnetic field that varies in intensity and polarity as the electrons change direction. By connecting each coil to a different phase, the electrons in each phase reverse direction at different times, resulting in a magnetic field that also changes at different times.
To achieve this rotating magnetic field, the coils are positioned 120 degrees apart and combined in the motor’s stator. This field causes the rotor, located inside the coils, to spin, enabling the motor to drive equipment like fans and pumps.
At the top or side of the motor, you’ll find an electrical terminal box containing six terminals labeled U-one, V-one, W-one, W-two, U-two, and V-two. The phase-one coil connects to the U terminals, phase-two to the V terminals, and phase-three to the W terminals.
To operate the motor, we need to complete the circuit, which can be done in two configurations: Delta and Star.
In the Delta configuration, U-one connects to W-two, V-one to U-two, and W-one to V-two. This setup allows electricity to flow between the phases as the AC power reverses direction at different times.
The Star configuration involves connecting W-two, U-two, and V-two on one side of the motor terminals. In this arrangement, electrons are shared between the phases at the terminals.
To switch between these configurations, contactors are used. These devices act as switches that control the flow of electricity in all three phases simultaneously. The main contactor connects to the three-phase supply and then to the respective terminals in the motor’s electrical terminal box.
A second contactor is used for the Delta circuit and a third for the Star circuit. Initially, the motor starts in the Star configuration, activating both the main and Star contactors. After a few seconds, the system switches to the Delta configuration by disconnecting the Star contactor and closing the Delta connection.
Automation of this process can be achieved using a timer to control the changeover, which can be further enhanced with advanced systems that monitor the motor’s current or speed.
It’s important to note that the color coding for three-phase supplies varies by region. For instance, in the US, different colors are used for 208-volt and 480-volt supplies, while the UK, EU, and Australia have their own color schemes.
The primary advantage of using Star Delta Starters is the reduction of inrush current when starting the motor. Starting a large induction motor in Delta can result in a starting current significantly higher than the normal operating current, potentially causing electrical issues, including voltage drops that may affect sensitive equipment.
The Star configuration reduces the coil voltage to about 58% compared to Delta, leading to a lower current of around 33% of the Delta configuration. This also results in a reduction in torque.
For example, if a motor is connected in Delta with a typical supply voltage of 400 volts, the current can be calculated based on the coil’s resistance. In a Star configuration, the voltage across each coil is lower, resulting in a lower current.
This demonstrates that the Star configuration uses less voltage and current compared to the Delta version, which is why we start with it.
Thank you for reading! To continue your learning, explore more resources and deepen your understanding of electrical systems.
Engage with an online simulation tool that allows you to visualize and manipulate the Star Delta Starter configurations. Observe how the current and voltage change in real-time as you switch between Star and Delta configurations. This will help you understand the practical implications of each setup.
Participate in a group discussion to explore the different color coding standards for three-phase supplies in various regions such as the US, UK, EU, and Australia. Share insights on how these differences impact international projects and discuss strategies for managing these variations in a global context.
In a supervised lab environment, construct a Star Delta Starter circuit using actual components. This hands-on activity will reinforce your understanding of the wiring and operation of contactors, as well as the transition between Star and Delta configurations.
Analyze a case study that highlights the benefits of using Star Delta Starters in industrial applications. Focus on the reduction of inrush current and its impact on the electrical system. Discuss the findings with your peers and propose solutions to optimize motor starting in different scenarios.
Test your knowledge with a quiz covering the key concepts of three-phase induction motors and Star Delta Starters. This will help reinforce your understanding of motor connections, configurations, and the role of contactors in switching between Star and Delta modes.
Sure! Here’s a sanitized version of the provided YouTube transcript:
—
Hello everyone, Paul here from TheEngineeringMindset.com. In this video, we will learn how Star Delta Starters work for three-phase induction motors. Please remember that electricity can be dangerous, and you should be qualified to perform any electrical work.
This is a real-world Star Delta Starter, and by the end of this video, you will understand the function of each part and how the entire system operates together. For clarity, I will use the traditional red-yellow-blue color coding for the phases, but I will also show you the color schemes used in the US, EU, UK, and Australia later in the video.
Three-phase motors are commonly found in commercial and industrial buildings. Inside a three-phase induction motor, there are three separate coils that create a rotating magnetic field. When we pass an AC current through each coil, it generates a magnetic field that changes in intensity and polarity as the electrons change direction. If we connect each coil to a different phase, the electrons in each phase will reverse direction at different times, resulting in a magnetic field that also changes at different times.
To create this rotating magnetic field, we need to position the coils 120 degrees apart and combine them in the motor’s stator. This rotating magnetic field causes the rotor, which sits inside the coils, to spin, allowing us to drive various equipment like fans and pumps.
At the top or side of the motor, there is an electrical terminal box. Inside this box, we have six electrical terminals labeled U-one, V-one, W-one, W-two, U-two, and V-two. The phase-one coil connects to the U terminals, phase-two to the V terminals, and phase-three to the W terminals.
Now, let’s connect the three-phase power supply to their respective terminals, starting with U-one, V-one, and W-one. To operate the motor, we need to complete the circuit, which can be done in two ways: the Delta configuration and the Star configuration.
In the Delta configuration, we connect U-one to W-two, V-one to U-two, and W-one to V-two. This allows electricity to flow between the phases as the AC power reverses direction at different times.
The Star configuration connects W-two, U-two, and V-two on one side of the motor terminals. In this setup, the electrons are shared between the phases at the terminals.
To switch between these configurations, we typically use contactors. These devices act as switches that control the flow of electricity in all three phases simultaneously. We connect our main contactor to the three-phase supply and then to the respective terminals in the motor’s electrical terminal box.
We also use a second contactor for the Delta circuit and a third for the Star circuit. Initially, we start in the Star configuration, activating both the main and Star contactors. After a few seconds, we switch to the Delta configuration by disconnecting the Star contactor and closing the Delta connection.
To automate this process, we can use a timer to control the changeover, which can also be enhanced with more advanced systems that monitor the motor’s current or speed.
In different regions, the color coding for three-phase supplies varies. For example, in the US, the colors differ for 208-volt and 480-volt supplies, while in the UK, EU, and Australia, different colors are used as well.
Now, why do we use Star Delta Starters? The primary reason is to reduce the inrush current when the motor starts. Starting a large induction motor in Delta can result in a starting current that is significantly higher than the normal operating current, which can lead to various electrical issues, including voltage drops that may affect sensitive equipment.
Using the Star configuration reduces the coil voltage to about 58% compared to Delta, leading to a lower current of around 33% of the Delta configuration. This also results in a reduction in torque.
To illustrate this, if we have a motor connected in Delta with a typical supply voltage of 400 volts, the current can be calculated based on the coil’s resistance. In a Star configuration, the voltage across each coil is lower, resulting in a lower current.
This demonstrates that the Star configuration uses less voltage and current compared to the Delta version, which is why we start with it.
Thank you for watching! To continue your learning, check out one of the videos on screen now, and I’ll see you in the next lesson.
—
This version maintains the educational content while removing any potentially sensitive or unnecessary details.
Star – A type of electrical connection in which three components are connected to a common point, forming a Y shape, often used in three-phase systems. – In a star connection, the neutral point allows for the distribution of both single-phase and three-phase power.
Delta – A type of electrical connection where three components are connected in a closed loop, forming a triangle, commonly used in three-phase systems. – The delta configuration is preferred in applications requiring high starting torque.
Motor – A machine that converts electrical energy into mechanical energy, often used to drive machinery. – The induction motor is widely used in industrial applications due to its robustness and simplicity.
Configuration – The arrangement of parts or elements in a particular form, figure, or combination, especially in engineering systems. – The configuration of the circuit was optimized to reduce energy losses.
Electricity – A form of energy resulting from the existence of charged particles, used as a power source in various applications. – The generation of electricity through renewable sources is becoming increasingly important in sustainable engineering.
Current – The flow of electric charge in a conductor, typically measured in amperes. – The current flowing through the circuit was measured to ensure it did not exceed the safety limits.
Phases – Distinct states in the cycle of an alternating current, typically referring to the three phases in a three-phase power system. – Balancing the load across all three phases is crucial for efficient power distribution.
Coils – Wound loops of wire that create a magnetic field when an electric current passes through them, used in motors and transformers. – The coils in the transformer were designed to handle high voltages efficiently.
Magnetic – Relating to or exhibiting magnetism, the force exerted by magnets when they attract or repel each other. – The magnetic properties of the material were analyzed to determine its suitability for use in the motor.
Contactors – Electrically-controlled switches used for switching an electrical power circuit, commonly used in motor control applications. – The contactors were selected based on their ability to handle the high current requirements of the industrial motor.
