Imagine a giant circuit with a battery, a switch, a light bulb, and two wires stretching 300,000 kilometers—the distance light travels in one second. This setup poses an intriguing question: after closing the switch, how long would it take for the bulb to light up? Is it half a second, one second, two seconds, or none of the above? To answer this, we need to explore how electrical energy travels from power plants to our homes.
Unlike a battery that provides a direct flow of electricity, the electricity in the grid is in the form of alternating current (AC). In AC systems, electrons in the power lines oscillate back and forth rather than moving in a continuous flow. So, if electrons don’t travel from the power plant to your home, how does electrical energy reach you?
Think of power lines as flexible plastic tubing and the electrons as a chain. When a power station operates, it pushes and pulls the electrons back and forth, allowing devices like toasters to use this energy. However, this analogy is misleading. There are physical gaps in the power lines, such as transformers, which prevent a continuous flow of electrons from the power station to your home.
Many misconceptions exist about electricity, such as the belief that electrons carry energy from the power station to devices in our homes. In reality, when electrons flow back to the power station, they do not carry energy back with them. This challenges the traditional narrative that electrons themselves possess potential energy and that they dissipate energy in devices.
In the 1860s and 70s, Scottish physicist James Clerk Maxwell made significant advancements in our understanding of electromagnetic fields, leading to the formulation of Maxwell’s equations. These equations describe how electric and magnetic fields interact and propagate.
Building on Maxwell’s work, John Henry Poynting developed the concept of energy flux, represented by the Poynting vector ($S$). This vector describes how much electromagnetic energy passes through a given area per second. The formula for the Poynting vector is $S = frac{1}{mu_0} (E times B)$, where $E$ is the electric field and $B$ is the magnetic field.

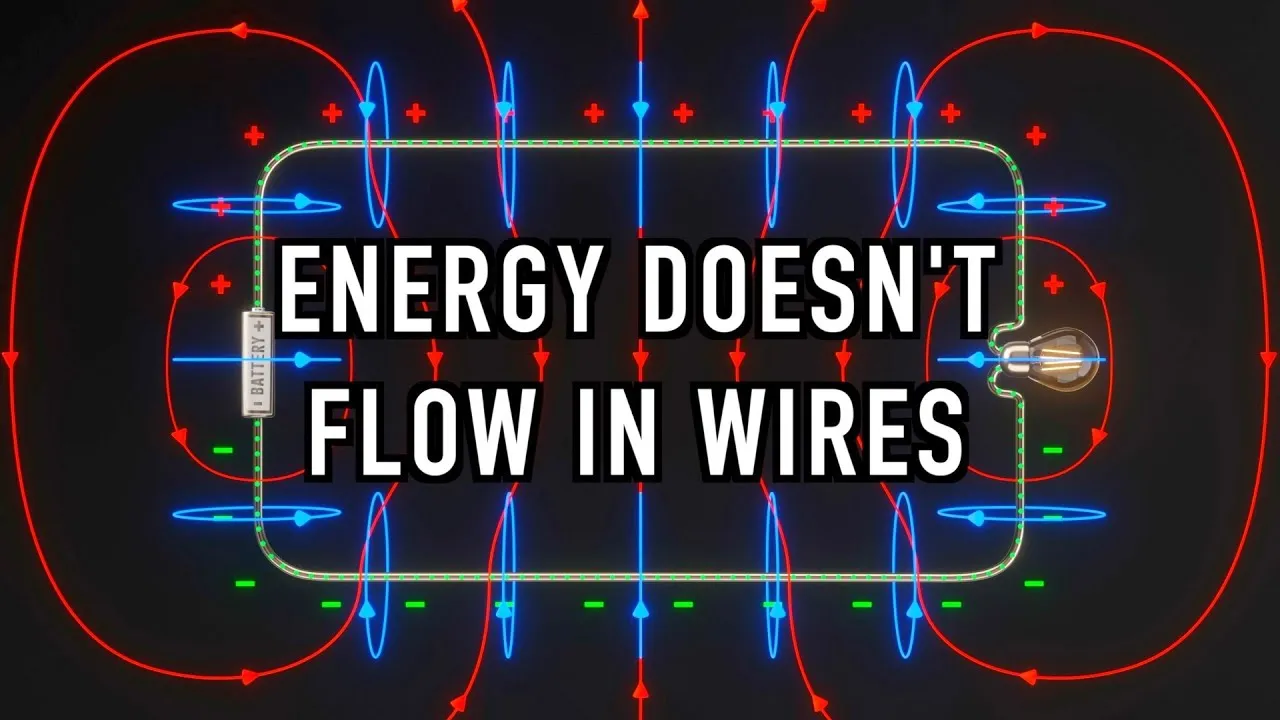

To understand how energy flows in a simple circuit with a battery and a light bulb, consider that when the battery is connected, its electric field extends through the circuit at the speed of light. This electric field causes electrons to drift, creating a current. However, the drift velocity of electrons is extremely slow, around a tenth of a millimeter per second.
Despite this slow movement, the energy flow can be analyzed using the Poynting vector. The energy flows radially outward from the battery and along the wires, ultimately reaching the light bulb. This demonstrates that energy is transmitted by the electric and magnetic fields surrounding the wires, not by the electrons themselves.
When using an alternating current (AC) source instead of a battery, the direction of the current reverses every half cycle. However, both the electric and magnetic fields also flip, ensuring that the Poynting vector continues to point in the same direction—from the source to the bulb. This means that energy can still flow effectively from power plants to homes, even though the electrons oscillate back and forth.
The understanding of energy transmission was put to the test during the laying of the first Transatlantic telegraph cable in 1858. The cable failed due to distortions in the signals sent over long distances. Scientists debated whether electrical signals moved like water through a tube or if they were carried by the fields around the wires. Ultimately, the latter view proved correct, leading to advancements in how we understand energy transmission today.
So, what is the answer to our initial question about the giant circuit? After closing the switch, the light bulb will turn on almost instantaneously, in roughly $1/C$ seconds. This is because the electric and magnetic fields can propagate through space to the bulb much faster than the electrons can drift through the wires.
Understanding how electrical energy flows can change the way we think about everyday actions, like flicking a light switch. The energy that powers our devices travels through electromagnetic fields, not through the movement of electrons in the wires. This insight not only enhances our comprehension of electricity but also highlights the fascinating principles that govern our modern electrical systems.
Use an online circuit simulator to build a simple circuit with a battery, switch, and light bulb. Experiment with closing the switch and observe how the light bulb reacts. Pay attention to the time it takes for the bulb to light up and consider the role of electric fields in this process.
Calculate the Poynting vector for a given circuit setup using the formula $S = frac{1}{mu_0} (E times B)$. Identify the direction of energy flow and discuss how this relates to the concept of energy transmission through electromagnetic fields rather than electron movement.
Engage in a class debate on the advantages and disadvantages of alternating current (AC) versus direct current (DC) in power transmission. Consider factors such as energy efficiency, safety, and historical context, including the role of AC in modern power grids.
Research the challenges faced during the laying of the first Transatlantic telegraph cable in 1858. Present your findings on how misunderstandings about energy transmission were addressed and how this influenced modern electrical engineering practices.
Write a short story or essay from the perspective of an electron in a power grid. Describe your journey and interactions with electric and magnetic fields, highlighting the misconceptions about your role in energy transmission.
Electricity – A form of energy resulting from the existence of charged particles such as electrons or protons, typically manifesting as either static electricity or dynamic electricity (current). – When you flip a switch, electricity flows through the circuit to power the light bulb.
Energy – The capacity to do work, which in the context of electricity, is often measured in joules or kilowatt-hours. – The energy consumed by a 100-watt light bulb in one hour is $0.1$ kilowatt-hours.
Circuits – Closed loops through which electric current can flow, consisting of various electrical components like resistors, capacitors, and inductors. – In a series circuit, the total resistance is the sum of the individual resistances.
Electrons – Subatomic particles with a negative charge that flow through conductors to create electric current. – The movement of electrons in a conductor constitutes an electric current.
Current – The flow of electric charge, typically measured in amperes (A). – Ohm’s Law states that the current $I$ through a conductor between two points is directly proportional to the voltage $V$ across the two points, expressed as $I = frac{V}{R}$.
Fields – Regions of space characterized by the presence of a force, such as electric or magnetic fields, which can exert a force on charged particles. – The electric field $E$ at a point in space is defined as the force $F$ experienced by a positive test charge $q$ placed at that point, given by $E = frac{F}{q}$.
Transmission – The process of conveying electricity from power plants to homes and businesses through power lines. – High-voltage transmission lines are used to minimize energy loss over long distances.
Bulb – A device that produces light from electricity, typically consisting of a filament or a diode that emits light when current passes through it. – When the switch is turned on, the electric current flows through the filament of the bulb, causing it to emit light.
Power – The rate at which energy is transferred or converted, measured in watts (W). – The power $P$ consumed by an electrical device can be calculated using the formula $P = VI$, where $V$ is the voltage and $I$ is the current.
Alternating – Referring to alternating current (AC), where the flow of electric charge periodically reverses direction. – In most homes, the electricity supplied is alternating current, which changes direction 60 times per second in the United States.
