Humans have long been captivated by the concept of speed. Throughout history, our progress has been marked by increasing velocity, culminating in one of the most significant achievements: breaking the sound barrier. This milestone in aviation history was not just a testament to human ingenuity but also a pivotal moment in our understanding of supersonic travel.
Following the first successful airplane flights, pilots were driven by a desire to push their aircraft to ever-greater speeds. However, as they approached the speed of sound, they encountered increased turbulence and significant forces that hindered further acceleration. Some pilots attempted to overcome these challenges through risky maneuvers, often with tragic outcomes.
In 1947, a breakthrough came with design improvements such as the movable horizontal stabilizer and the all-moving tail. These innovations enabled American military pilot Chuck Yeager to fly the Bell X-1 aircraft at 1127 km/h, making him the first person to break the sound barrier and travel faster than the speed of sound. This achievement paved the way for the development of many supersonic aircraft, with later models reaching speeds exceeding Mach 3.
Aircraft traveling at supersonic speeds generate a shock wave, producing a thunderous noise known as a sonic boom. This phenomenon can cause distress to people and animals below and even damage buildings. Consequently, scientists worldwide have been studying sonic booms to predict their paths in the atmosphere, determine where they will land, and assess their loudness.
To grasp how scientists study sonic booms, it’s essential to understand some basics of sound. Imagine throwing a small stone into a still pond. The stone creates waves that travel outward at the same speed in every direction, forming wave fronts. Similarly, a stationary sound source, like a home stereo, emits sound waves that travel outward, with their speed influenced by factors such as altitude and air temperature.
At sea level, sound travels at approximately 1225 km/h. Unlike the two-dimensional circles in a pond, sound wave fronts are concentric spheres, with sound traveling along rays perpendicular to these waves. When a sound source moves, like a train whistle, the waves in front become bunched together, causing the Doppler effect, where approaching objects sound higher pitched.

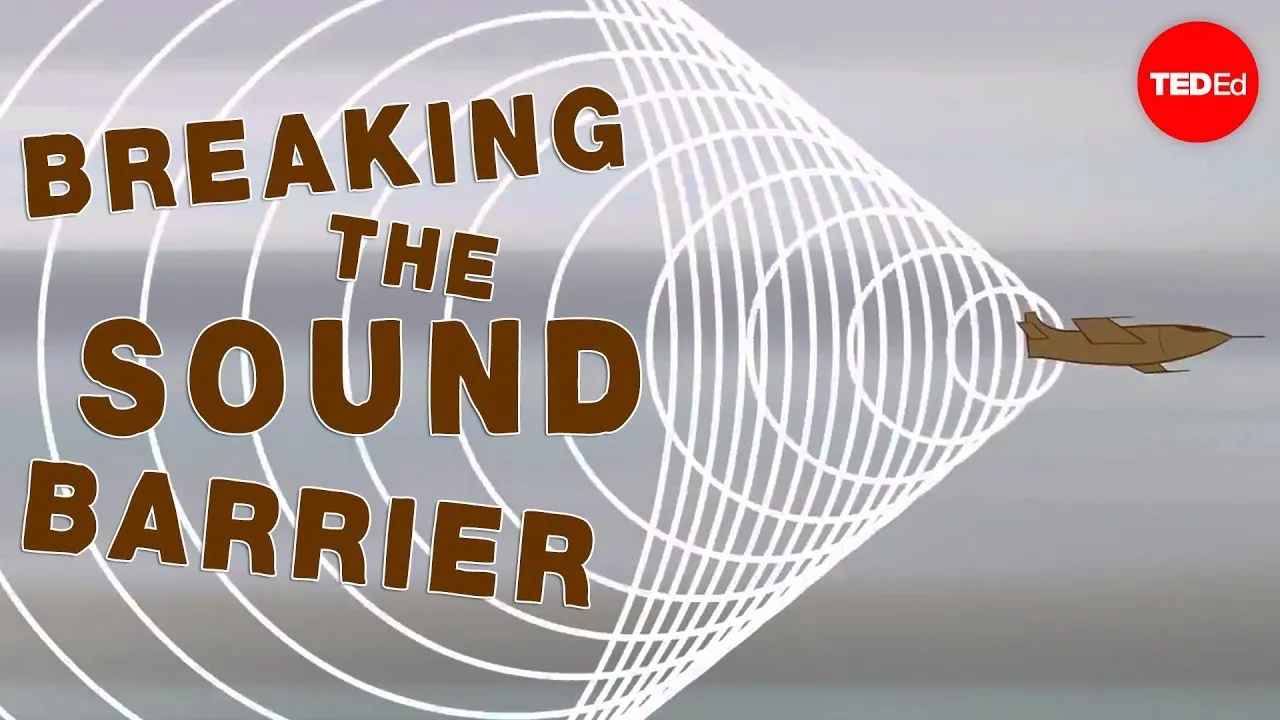

When an object surpasses the speed of sound, the dynamics change dramatically. As it overtakes the sound waves it has emitted while generating new ones, the waves are forced together, forming a Mach cone. No sound is heard as the object approaches an observer because it travels faster than the sound it produces. The sonic boom is only heard after the object has passed.
Where the Mach cone meets the ground, it forms a hyperbola, creating a trail known as the boom carpet as it moves forward. This allows scientists to determine the area affected by a sonic boom. Predicting the strength of a sonic boom involves solving the Navier-Stokes equations to find the variation of pressure in the air due to the supersonic aircraft, resulting in the pressure signature known as the N-wave.
The N-wave shape signifies a sudden change in pressure, causing a double boom: one for the initial pressure rise at the aircraft’s nose and another when the tail passes, returning the pressure to normal. Although this results in a double boom, it is usually perceived as a single boom by human ears. Computer models using these principles can often predict the location and intensity of sonic booms for specific atmospheric conditions and flight trajectories, with ongoing research aimed at mitigating their effects. Meanwhile, supersonic flight over land remains prohibited.
While humans strive to silence sonic booms, nature has been utilizing them for eons. The gigantic Diplodocus may have cracked its tail faster than sound, possibly to deter predators. Some shrimp species can create a similar shock wave underwater, stunning or even killing prey with a snap of their oversized claw. Thus, while humans have made significant strides in the pursuit of speed, nature was there first, harnessing the power of sonic booms long before us.
Design and build your own paper airplane. Test how far and fast it can fly by measuring the distance it covers in a given time. Compare different designs to see which one flies the fastest and discuss why certain designs might be more aerodynamic.
Using a computer or tablet, access an online simulation that demonstrates how sonic booms are created. Experiment with different speeds and altitudes to see how they affect the sonic boom. Discuss your findings with your classmates.
Conduct an experiment to visualize sound waves. Fill a bowl with water and drop a small stone into it to create waves. Observe how the waves spread out and discuss how this relates to sound waves in the air. Try moving the stone faster to see how the waves change.
Choose a supersonic aircraft, such as the Concorde or the Bell X-1, and research its history, design, and impact on aviation. Create a presentation to share with your class, including images and interesting facts about the aircraft.
Write a short story or essay about an animal that uses sonic booms in nature, like the Diplodocus or a snapping shrimp. Describe how the animal creates the sonic boom and how it uses this ability in its environment. Share your story with the class.
Speed – The distance an object travels in a certain amount of time. – The car moved at a high speed, reaching the finish line quickly.
Sound – A type of energy that travels in waves and can be heard when it reaches a person’s or animal’s ear. – We could hear the sound of the bell ringing from far away.
Sonic – <i(Relating to sound or the speed of sound, especially in air. – The sonic waves created by the jet were powerful enough to shake the windows.
Boom – A loud, deep sound that can be caused by an explosion or a sonic event. – The boom from the fireworks echoed through the night sky.
Aircraft – A vehicle that is able to fly, such as an airplane or helicopter. – The aircraft soared above the clouds, leaving a trail of white vapor behind.
Waves – Disturbances that transfer energy through a medium, such as air or water. – The waves in the ocean crashed against the shore with great force.
Pressure – The force applied to a surface divided by the area of that surface. – The pressure inside the balloon increased as more air was pumped in.
Dynamics – The study of forces and motion in objects. – Understanding dynamics helps engineers design safer vehicles.
Turbulence – Irregular or chaotic changes in the flow of a fluid, often causing bumps in the air. – The airplane experienced turbulence as it flew through the stormy clouds.
Mach – A unit of measurement used to describe the speed of an object compared to the speed of sound. – The fighter jet flew at Mach 2, which is twice the speed of sound.
