Thermostatic radiator traps are essential components in two-pipe steam heating systems, commonly found in older residential, commercial, and industrial buildings. These systems efficiently distribute heat without the need for pumps, relying on steam to transfer thermal energy throughout the building. Let’s delve into the purpose and functionality of these traps and how they contribute to the efficiency of steam heating systems.
Steam heating systems operate by heating water until it boils and turns into steam at 100 degrees Celsius (212 degrees Fahrenheit). This steam carries thermal energy, which is then distributed through pipes to radiators in different rooms. As the steam transfers its heat to the room, it cools and condenses back into water, which is returned to the boiler for reheating.
In this process, it’s crucial to ensure that only the condensate, not the steam, returns to the boiler. Allowing steam to enter the return line can lead to energy loss and potential system issues like steam binding and steam hammer, which can be damaging.
Thermostatic radiator traps are designed to allow air and water to pass through while preventing steam from escaping into the return line. This is achieved using a mechanical valve that automatically responds to temperature changes. One common design is the bellow type, which consists of a main body with an inlet and outlet, and a set of bellows inside.
The bellows contain a liquid that vaporizes at or near the boiling point of water. When steam contacts the bellows, the liquid inside rapidly expands, causing the bellows to extend and block the valve outlet. This prevents steam from entering the return line, ensuring efficient heat transfer to the room.
During operation, the bellows continuously expand and contract as the system cycles between heating and cooling. In a typical heating season, a trap might open and close around 180,000 times. Over several years, this can lead to wear and tear, resulting in potential failure due to metal fatigue or corrosion from the condensate.
Thermostatic radiator traps can fail in two ways: open or closed. An open failure allows steam to pass through, wasting energy and causing system inefficiencies. A closed failure blocks the valve, preventing heat from reaching the radiator. Regular maintenance and timely replacement of the bellows are crucial to prevent sudden failures and ensure the system operates efficiently.
Understanding the role and maintenance of thermostatic radiator traps is vital for the efficient operation of steam heating systems. By preventing steam from entering the return line, these traps help maintain energy efficiency and prevent potential system issues. Regular inspection and replacement of the bellows can extend the life of the system and ensure consistent heating performance.
For more insights into heating systems and engineering, explore additional resources and continue your learning journey.
Examine a detailed interactive diagram of a steam heating system. Identify and label the key components, including the thermostatic radiator traps. This will help you visualize how each part functions within the system.
Review a case study of a building with a steam heating system. Analyze the impact of thermostatic radiator trap failures on the system’s efficiency. Discuss potential solutions and preventive measures with your peers.
Participate in a simulation exercise where you perform maintenance on a virtual steam heating system. Practice identifying signs of wear and tear in thermostatic radiator traps and learn the steps for replacing faulty components.
Engage in a group discussion about the role of thermostatic radiator traps in maintaining energy efficiency. Share insights on how regular maintenance can prevent energy loss and system issues, and propose strategies for effective maintenance schedules.
Conduct research on the latest advancements in thermostatic radiator trap technology. Prepare a presentation to share your findings with the class, highlighting how these innovations can improve the efficiency and reliability of steam heating systems.
Here’s a sanitized version of the provided YouTube transcript:
—
This is a thermostatic radiator trap, commonly found in two-pipe steam heating systems. In this video, we will explore their purpose and functionality. This video is sponsored by State Supply. Visit statesupply.com to explore various types of steam traps, shop for parts and accessories, or consult with a knowledgeable steam system specialist about your specific needs. You can find the link in the video description below.

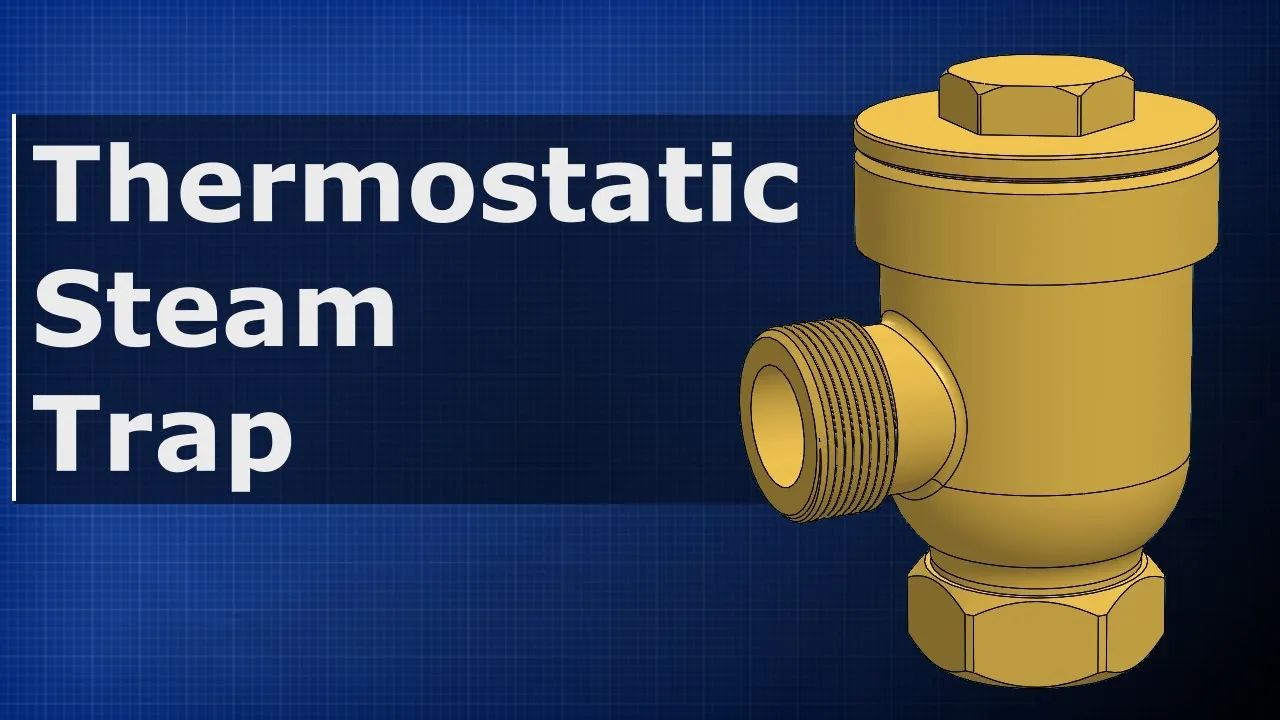

The thermostatic radiator trap typically looks like this, although there are many variations. These valves are connected to the low side of a steam-operated radiator. This mechanical valve allows air and water to pass through while automatically preventing steam from doing so. We will explain how this works later in the video.
Steam heating systems are prevalent in residential, commercial, and industrial settings, especially in larger, older buildings and campuses. These systems do not require pumps; instead, they use steam itself to distribute heat throughout the building. However, a condensate pump may be present on the return line.
So, why do we need a thermostatic radiator trap on our radiators? To answer that, we first need to understand how the steam system operates. When thermal energy is added to water at standard atmospheric pressure, its temperature rises until it reaches 100 degrees Celsius (212 degrees Fahrenheit), at which point it begins to boil and evaporate into steam. The thermal energy is carried away by the steam.
If we capture and contain the steam by placing a loosely fitting lid over a vessel, we would see the lid rise. If we fix the lid firmly, the internal pressure increases because the water molecules expand and take up more space. In cooler water, the molecules are tightly packed, but as thermal energy is added, they vibrate rapidly, increasing their volume. One unit of water can expand into steam approximately 1600 times its original volume.
In a typical two-pipe steam heating system, the boiler adds thermal energy, heating the water and turning it into steam. The pressure pushes the steam along the pipe into the radiator, where it heats the ambient air of the room. The thermal energy transfers from the steam through the radiator wall into the room air. As the air heats up, it rises, and cooler air rushes in to take its place, creating a continuous cycle. The steam gives away its thermal energy, condenses back into a liquid, and the high pressure pushes this water back to the boiler for reheating.
We want only condensate liquid returning to the boiler; steam in the return line would waste energy by warming the condensate and losing heat on the way back. Mixing steam and condensate can lead to issues like steam binding and steam hammer, which can be catastrophic for the system. Therefore, we must avoid this, and one way to do that is through a thermostatic radiator trap.
There are several designs for thermostatic steam traps, but we will focus on the bellow type in this video. The valve consists of a main body with an inlet and an outlet. At the top is a hexagonal bolt head that allows for maintenance and repairs. Inside, we find a set of bellows that push a plug into the valve seat just before the outlet. The bellows are secured at the top of the trap and contain a liquid that vaporizes at or near the boiling point of water, typically a mixture of water and alcohol. This is used to control the valve automatically, as water expands rapidly when heated.
When steam comes into contact with the bellows, the water inside is heated and flashes into steam almost instantly, causing a rapid increase in volume. This extension of the bellows blocks the outlet of the valve. During system startup, the bellow is open, and the trap fills with condensate. As steam enters the trap and heats the bellow, the pressure increases, causing the bellow to extend and plug the outlet, preventing steam from flowing into the condensate line. This allows the steam in the radiator to transfer heat to the room.
As the steam cools, it condenses into a liquid, filling the trap body and drawing heat out of the bellow. This reduces the pressure inside the bellow, allowing it to shrink back to its original length and position, which opens the valve. The steam then pushes the condensate out, and the trap closes, repeating the cycle.
During operation, the bellows continuously expand and contract. In a typical building with about 1,000 hours of heating per season, the trap might open and close approximately three times per minute, resulting in around 180,000 cycles in a single heating season. After five or six years, the trap may have opened and closed more than one million times, leading to wear and tear on the mechanical bellow. Simple metal fatigue can cause the trap to fail after a few years, and the corrosive nature of the condensate can weaken the bellows. Typically, a steam trap has a useful life of around three to five years.
Thermostatic radiator traps do not fail gradually; when they fail, it is sudden and without warning. The bellows should be replaced as part of routine maintenance according to the manufacturer’s recommendations. When the bellow breaks, the water inside escapes, preventing the bellow from responding to temperature changes.
There are two types of failures: open and closed. In an open failure, the bellow ruptures, allowing steam to pass through, which wastes energy and causes system problems. This can be hard to detect since the radiator will still be hot. In a closed failure, the bellow drops and blocks the valve, preventing heat from reaching the radiator, indicating that the valve has failed.
