In vehicles with combustion engines, the starter motor plays a crucial role. This small yet powerful electric motor transforms the electrical energy from the car’s battery into mechanical energy. If you’ve ever faced the frustration of a dead battery or wondered how to diagnose a faulty starter motor, understanding its function can be quite enlightening.
To get a car engine running, we need to kickstart the combustion process. This involves moving the pistons, which are connected to the crankshaft. In the early days of automobiles, this was done manually by attaching a handle to the crankshaft and turning it by hand. However, this method was not only inconvenient but also posed safety risks.
In contemporary vehicles, the process is much more efficient and safer. A flywheel, equipped with teeth around its edge, is connected to the rear of the engine. The starter motor is positioned near this flywheel. When you start the car, the starter motor temporarily engages with the flywheel, causing it to rotate. This rotation turns the crankshaft, moving the pistons and initiating the combustion process. Once the engine starts, the starter motor disengages from the flywheel, allowing the engine to run independently.
The starter motor’s pinion gear is relatively small compared to the flywheel, necessitating a high rotation speed. Additionally, it requires significant torque to turn the crankshaft, which means it draws a substantial current from the battery during startup.
After the engine is running, the alternator takes over by generating electricity to recharge the battery. The alternator’s workings are fascinating and have been explored in detail in previous lessons. If you’re curious, be sure to check out those resources for a deeper understanding.
For those interested in delving deeper into automotive engineering, numerous resources and videos are available. These can provide valuable insights and enhance your understanding of how vehicles operate. Stay connected with us on various social media platforms and visit engineeringmindset.com for more educational content.
Create a detailed diagram of the starter motor system in a car, including the battery, starter motor, flywheel, and crankshaft. Use online tools like Lucidchart or draw.io to make it interactive. Label each component and describe its function. Share your diagram with classmates for feedback.
Participate in a workshop where you can disassemble and reassemble a starter motor. This hands-on experience will help you understand the internal components and their roles. Document the process with photos and notes, and present your findings to the class.
Analyze a case study of a vehicle with starter motor issues. Identify the symptoms, diagnose the problem, and propose solutions. Discuss the case with peers to explore different diagnostic approaches and repair techniques.
Use a car engine simulation software to observe how the starter motor interacts with the flywheel and crankshaft. Experiment with different scenarios, such as a weak battery or a faulty starter motor, to see how they affect engine startup. Write a report on your observations.
Research the evolution of starter motors from manual cranking to modern electric systems. Prepare a presentation highlighting key developments and technological advancements. Include visuals and engage your audience with questions and discussions.
Here’s a sanitized version of the YouTube transcript:
—

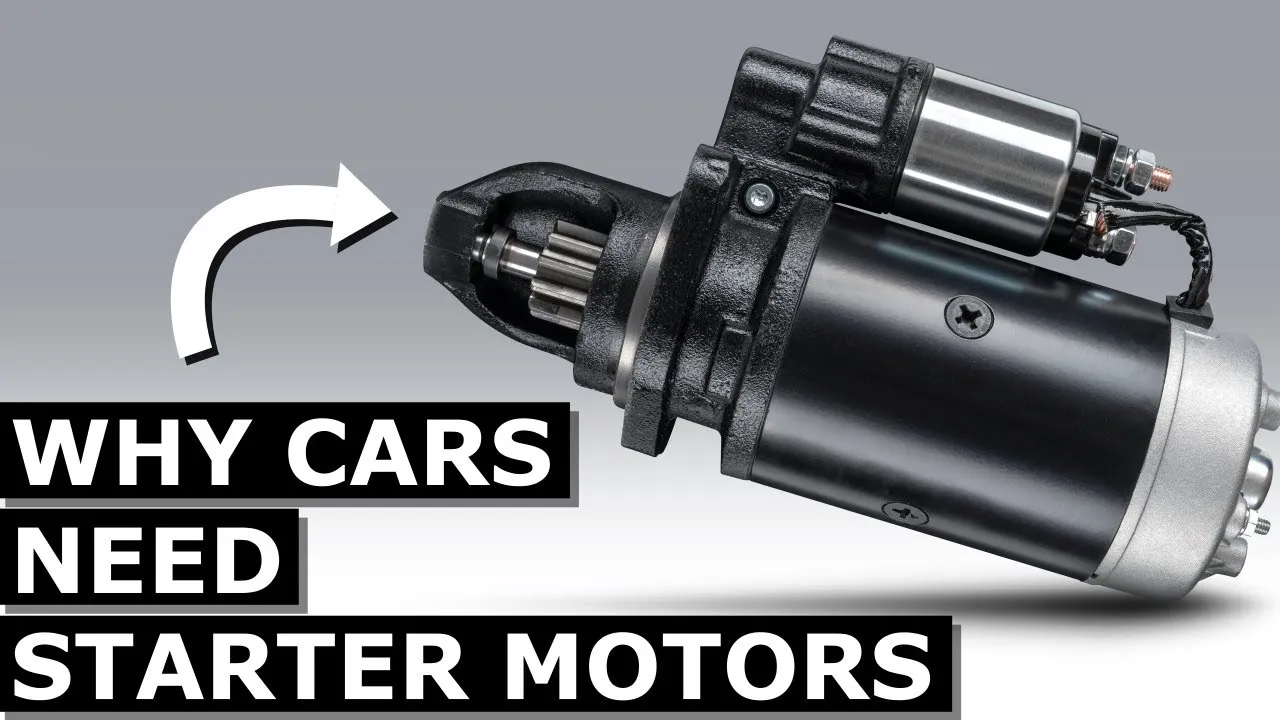

Starter motors look something like this, and we find them in combustion engine vehicles. This is a relatively small but very powerful electric motor that converts the electrical energy of the battery into mechanical energy. Have you ever started a car when the battery was dead, or do you have any tips for diagnosing a faulty starter motor? Let me know in the comment section below.
